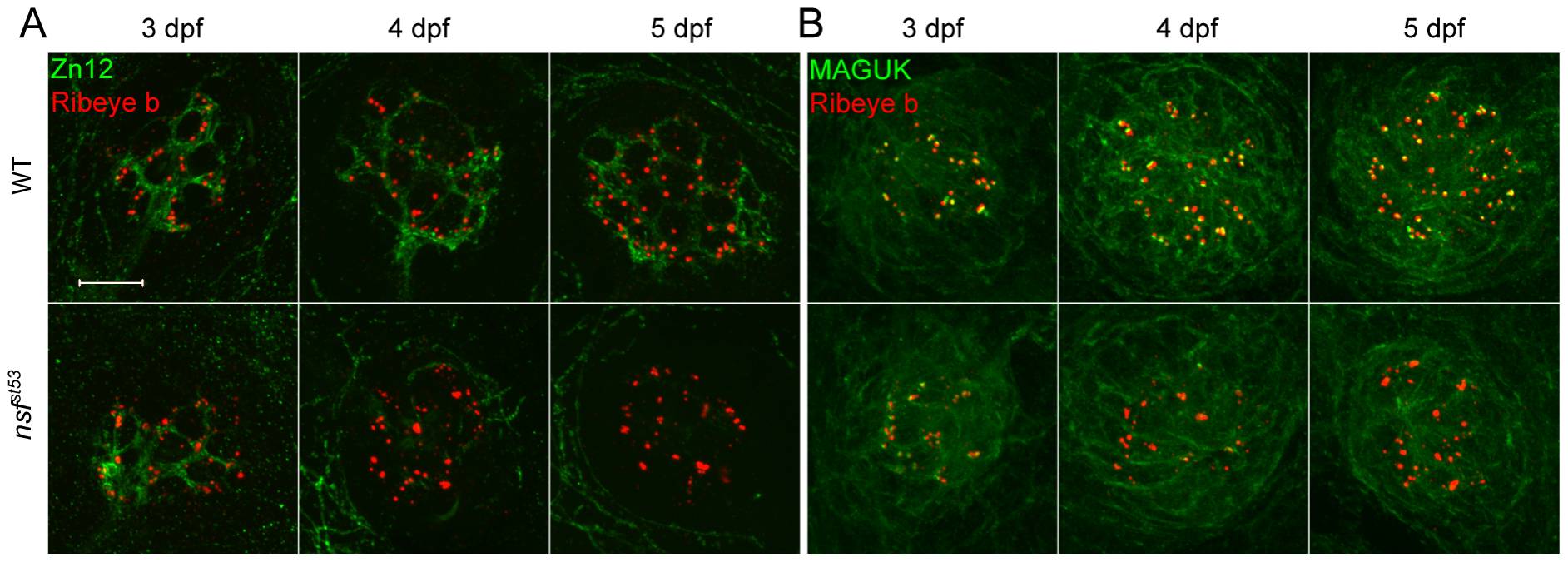

Fig. 3 Degeneration of hair-cell synapses in nsfst53 mutants during development.
A, Antibodies against Zn12 (green) and Ribeye b (red) were used to label afferent fibers and hair-cell ribbons, respectively, in wild-type (WT) and nsfst53 mutant larvae at 3, 4 and 5 dpf. B, Anti-Ribeye b (red) and MAGUK (green) labels the pre- and postsynaptic compartments respectively in neuromasts of wild-type and nsfst53 mutants (3 to 5 dpf). Scale bar: 10 μm; z-projection of 10 confocal planes (1 μm each).
