Fig. S8

ID
ZDB-IMAGE-111129-20
Source
Figures for Alexander et al., 2011
Figure Caption

Fig. S8

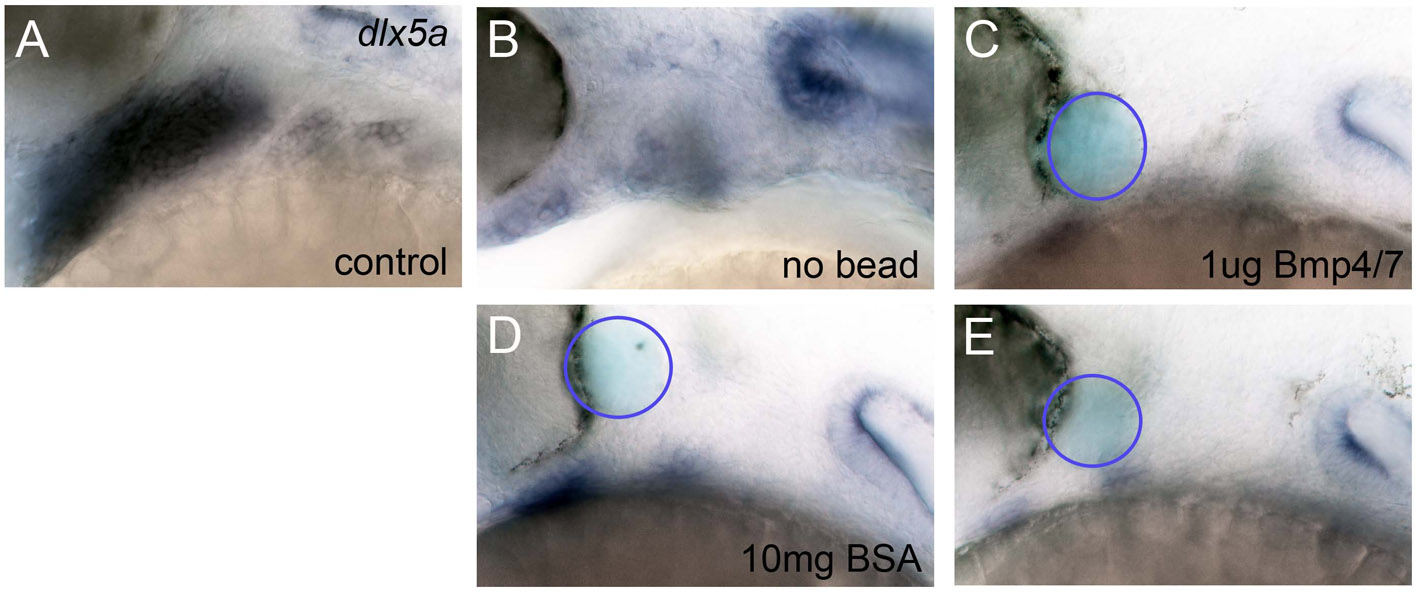

Beads soaked in human recombinant BMP4/7 do not rescue dlx5a expression in Edn1-deficient embryos. (A-E) Whole-mount in situ hybridization to detect expression of dlx5a at 30 hpf, lateral views, anterior towards the left in controls (A), edn1-MO injected embryos alone (B) or implanted with a BSA-soaked control bead (C) and two examples of edn1-MO injected embryos implanted with a BMP4/7 protein-soaked bead (C,E). Arches 1 and 2 are numbered.
