Fig. 5

ID
ZDB-IMAGE-111128-21
Genes
Source
Figures for Choe et al., 2011
Figure Caption

Fig. 5

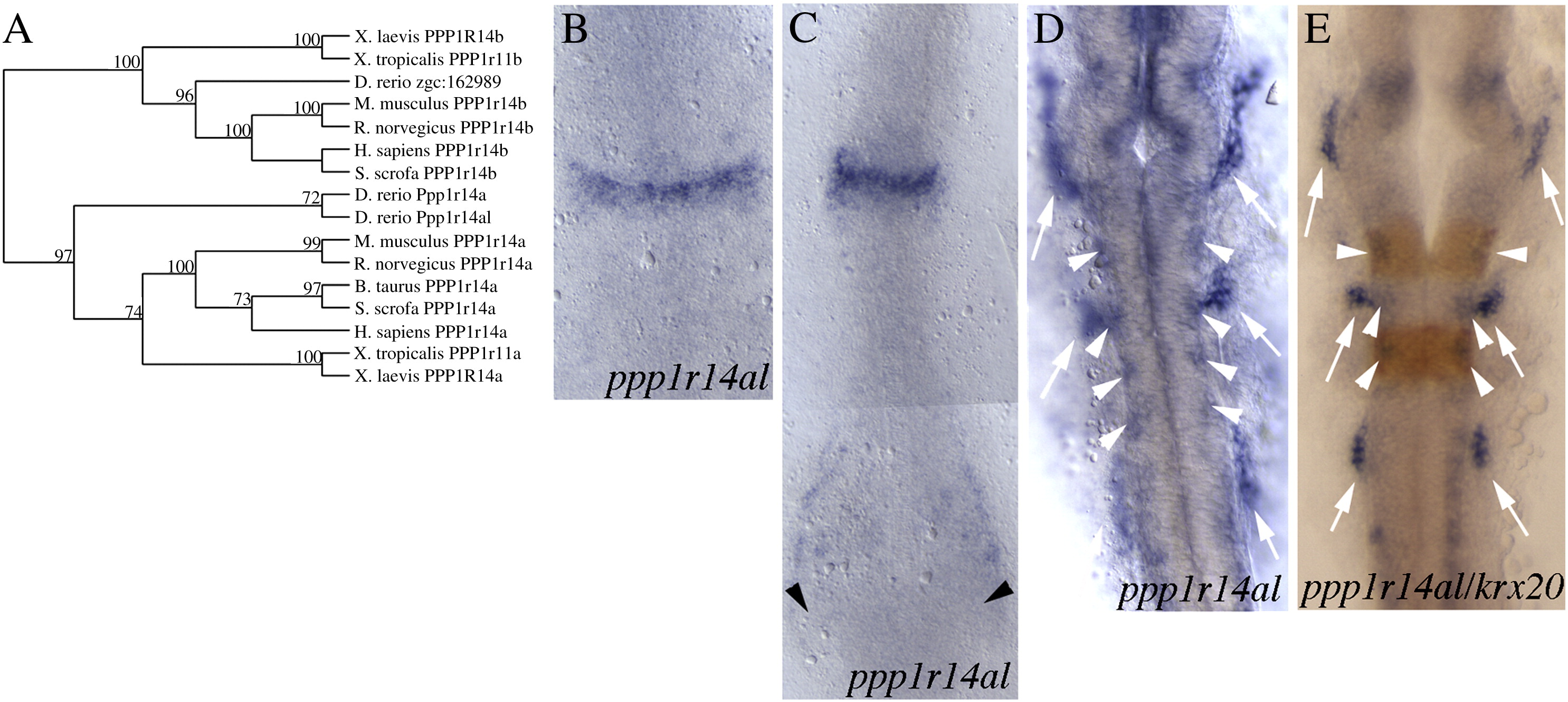

Sequence and expression analysis of the ppp1r14al gene. (A) Phylogenetic tree demonstrating that zebrafish ppp1r14al groups with other ppp1r14a genes, not with ppp1r14b genes. (B–E) ppp1r14al expression pattern at 9hpf (B), 11hpf (C) and 20hpf (D, E). Arrows indicate cranial placodes (D, E) and arrowheads indicate staining in ventral mesoderm (C) and in the lateral neural tube (D, E). E is a double in situ hybridization with krox20 detected in red. Embryos in B–E are shown as flat mounts in dorsal view with anterior to the top.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 358(2), Choe, S.K., Zhang, X., Hirsch, N., Straubhaar, J., and Sagerström, C.G., A screen for hoxb1-regulated genes identifies ppp1r14al as a regulator of the rhombomere 4 Fgf-signaling center, 356-67, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
