Figure Caption
Fig. S4

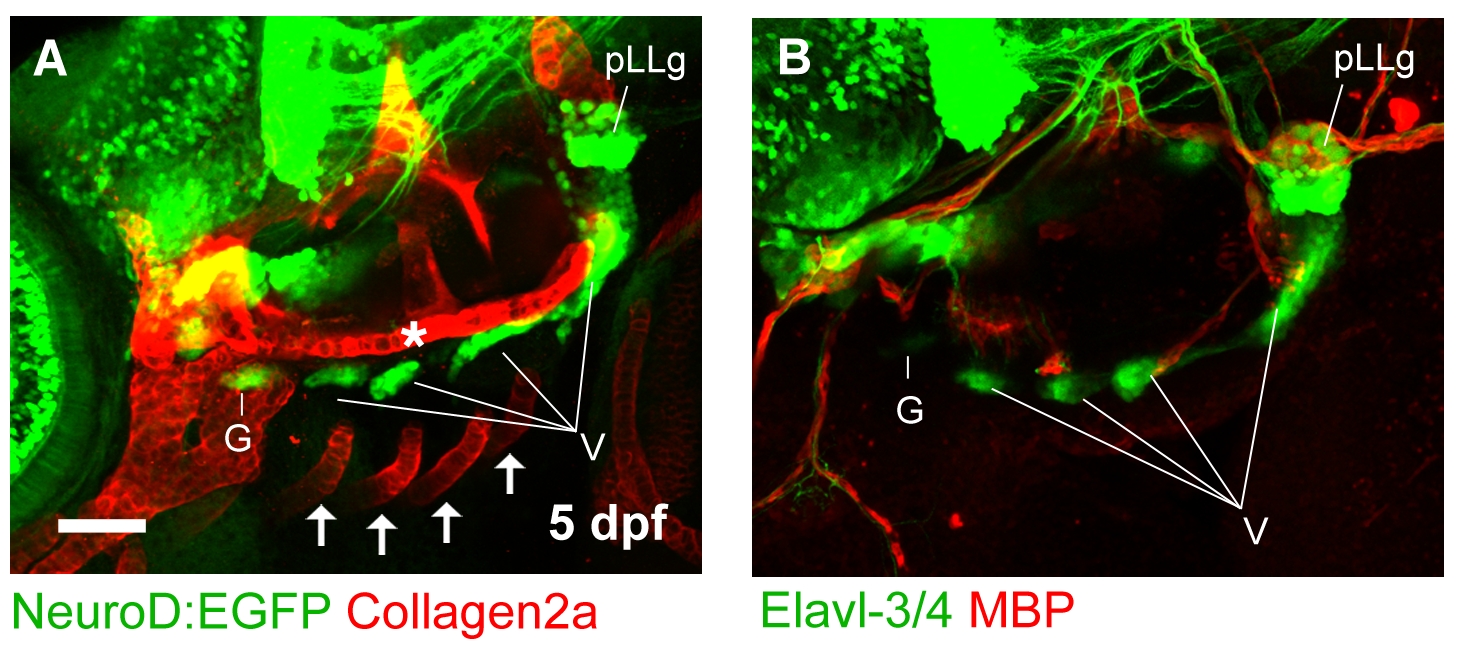

Spatial relationship between neurons, glia, and cartilage in the zebrafish head. (A) Lateral view of cranial ganglia in a 5 dpf wildtype larva expressing Tg(neurod:EGFP) and stained for Collagen2a (red). The rostral basicranial commisure (asterisk) can be seen positioned dorsally to the cranial ganglia. The Collagen2a-positive branchial arches are located ventrally (arrows). (B) Lateral view of cranial ganglia in a 5 dpf wildtype larva as visualized with immunofluoresence against Elavl-3/4 (green). Glial cells are stained with an antibody recognizing MBP (red). Scale bar in (A) = 50 μm.
