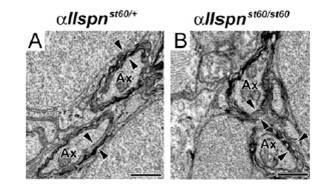

Fig. S7 Sensory nerve myelin in mutant zebrafish lacking αII spectrin. (A and B) Transmission electron microscopy images of transverse sections from 7 d postfertilization larvae posterior lateral line nerves. Compared with heterozygous control (A), no apparent myelin defects were seen in αII spectrin mutant fish (B). Ax indicates axon, and arrowheads indicate multiple layers of myelin. (Scale bars, 0.5 μm.)
