Fig. 6

ID
ZDB-IMAGE-110407-6
Genes
Source
Figures for Padanad et al., 2011
Figure Caption

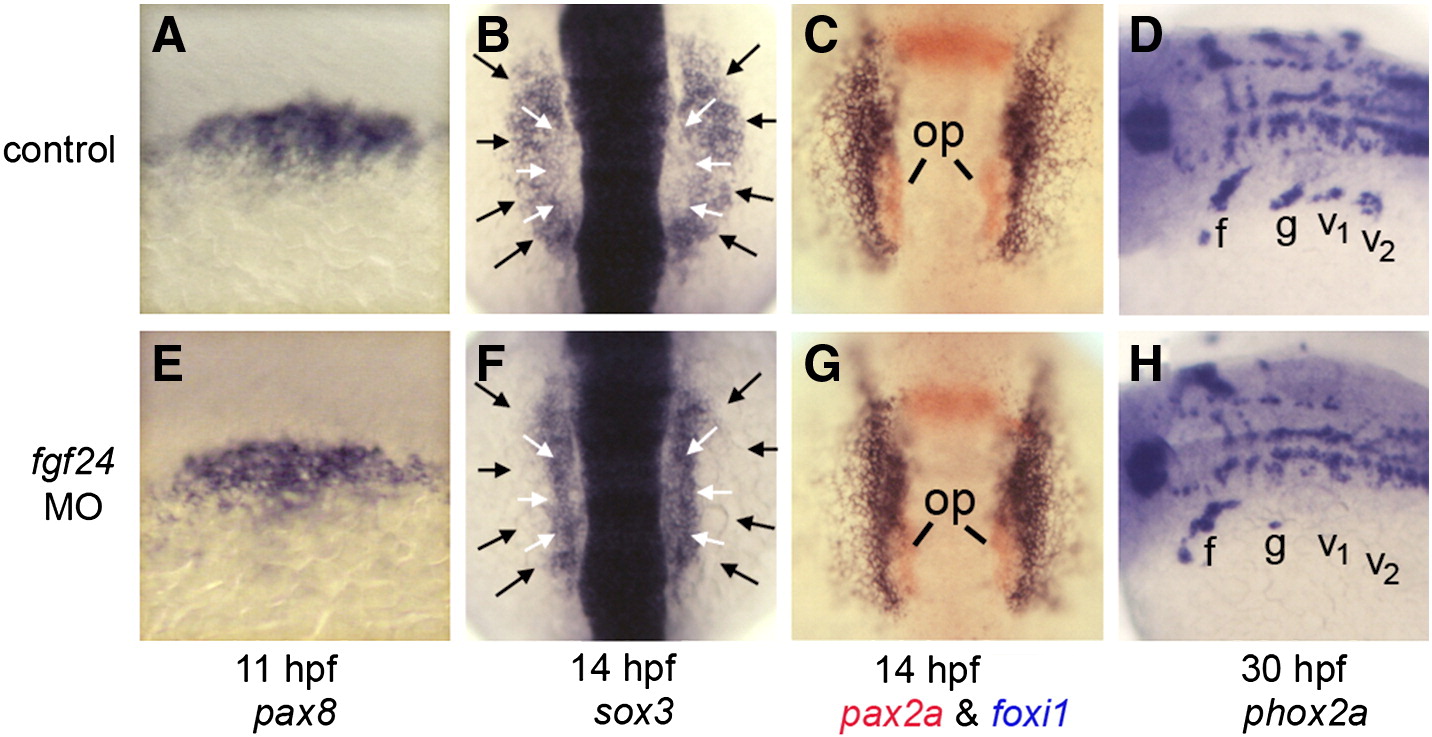

Fig. 6 fgf24 is required for epibranchial development. (A, E) Expression of pax8 at 11 hpf in a control embryo (A) and fgf24 morphant (E). (B, F) Expression of sox3 at 14 hpf in a control embryo (B) and fgf24 morphant (F). White arrows indicate the lateral edges of the otic domain and black arrows indicate the lateral edges of the epibranchial domain. (C, G) Two color in situ hybridization showing pax2a (red) and foxi1 (blue) in a control embryo (C) and fgf24 morphant (G) at 14 hpf. Positions of otic placodes (op) are indicated. (D, H) Expression of phox2a at 30 hpf in a control embryo (D) and fgf24 morphant (H). Positions of the facial ganglion (f), glossopharyngeal ganglion (g) and vagal ganglia (v1 and v2) are indicated. Images show dorsolateral views with anterior to the left (A, D, E, H); dorsal views with anterior to the left and dorsal to the top (B, C, F, G).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 351(1), Padanad, M.S., and Riley, B.B., Pax2/8 proteins coordinate sequential induction of otic and epibranchial placodes through differential regulation of foxi1, sox3 and fgf24, 90-98, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
