Figure Caption

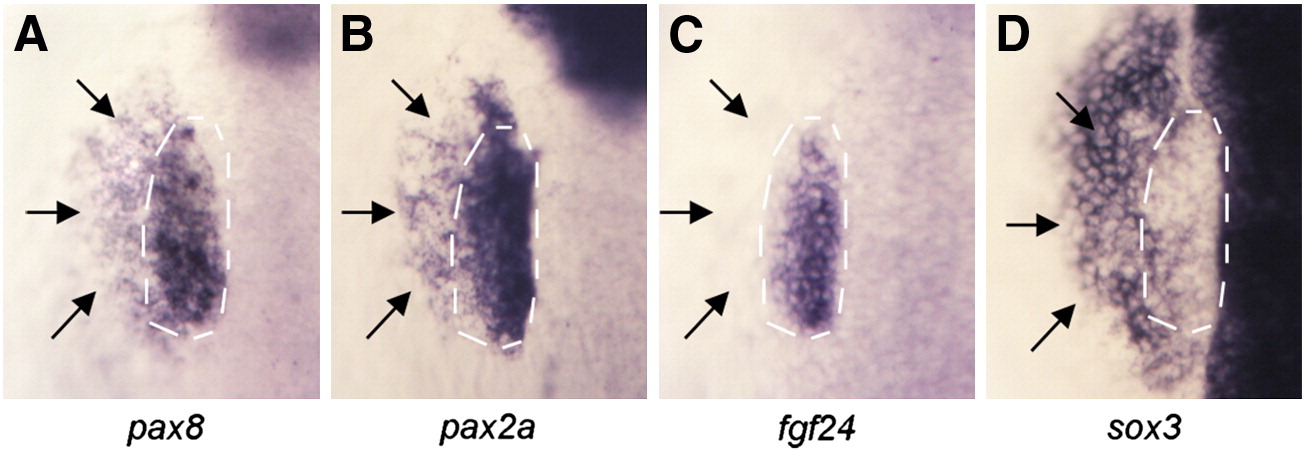

Fig. 1 Spatial domains of otic and epibranchial markers at 12 hpf. Dorsal views showing expression of pax8 (A), pax2a (B), fgf24 (C) and sox3 (D) in wild-type embryos at 12 hpf. Otic domains (white dashed lines) and epibranchial domains (black arrows) are indicated. Unlike the other genes, fgf24 expression is limited to the otic domain.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 351(1), Padanad, M.S., and Riley, B.B., Pax2/8 proteins coordinate sequential induction of otic and epibranchial placodes through differential regulation of foxi1, sox3 and fgf24, 90-98, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
