Figure Caption

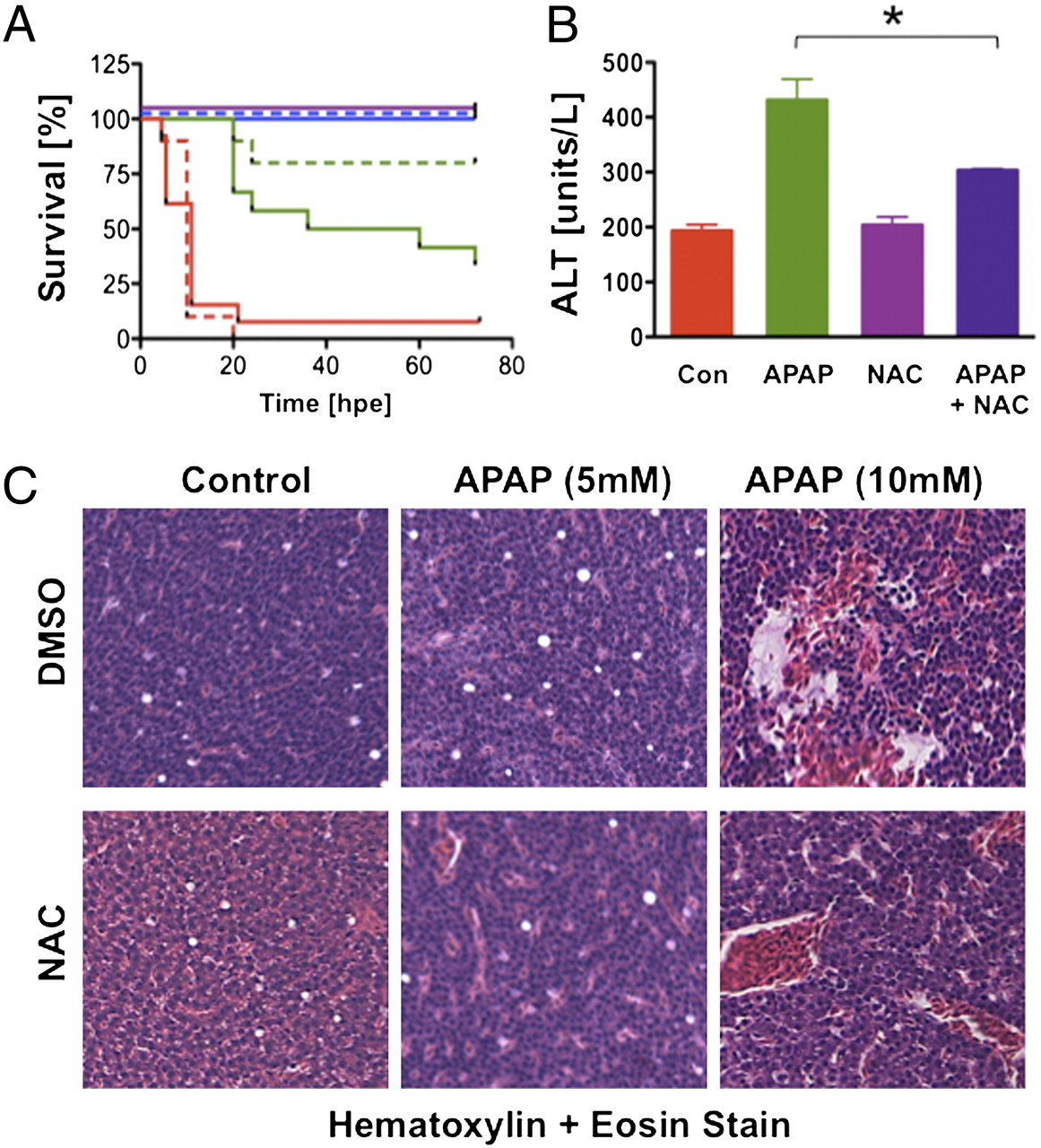

Fig. 2 N-acetylcysteine prevents liver toxicity. (A) Survival was assessed in adult zebrafish exposed to 5 (blue), 10 (green), or 25 (red) mM APAP alone (solid line) and with 10 μM NAC (dashed line; n e 10 per group). (B) APAP-induced elevation of ALT is reversed by the addition of NAC. *ANOVA, P < 0.05, 15–20 fish for three replicates). (C) Zebrafish were exposed to APAP and NAC at the indicated doses; NAC decreased the extent of necrosis after APAP.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Proc. Natl. Acad. Sci. USA
