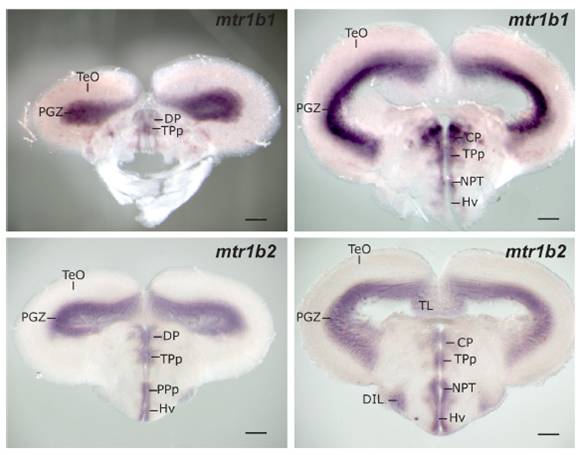

Fig. S4 melatonin receptor 1b1 (NM_131394) and 1b2 (NM_131395) mRNA ISH patterns in adult brain sections. Note the similar distribution with HCRT fibers and HCRT receptor mRNA displayed in Fig. 3. CP, central posterior thalamic nucleus; DIL, diffuse nucleus of the inferior lobe; DP, dorsal posterior thalamic nucleus; Hv, ventral zone of the periventricular hypothalamus; NPT, posterior tuberal nucleus; PGZ, periventricular gray zone of the optic tectum; PPp, parvocellular preoptic nycleus, posterior part; TeO, optic tectum; TL, torus longitudinalis; TPp, periventricular nucleus of posterior tuberculum. (Scale bar, 200 μm.)
