Fig. 7

ID
ZDB-IMAGE-100628-7
Genes
Source
Figures for Cheah et al., 2010
Figure Caption

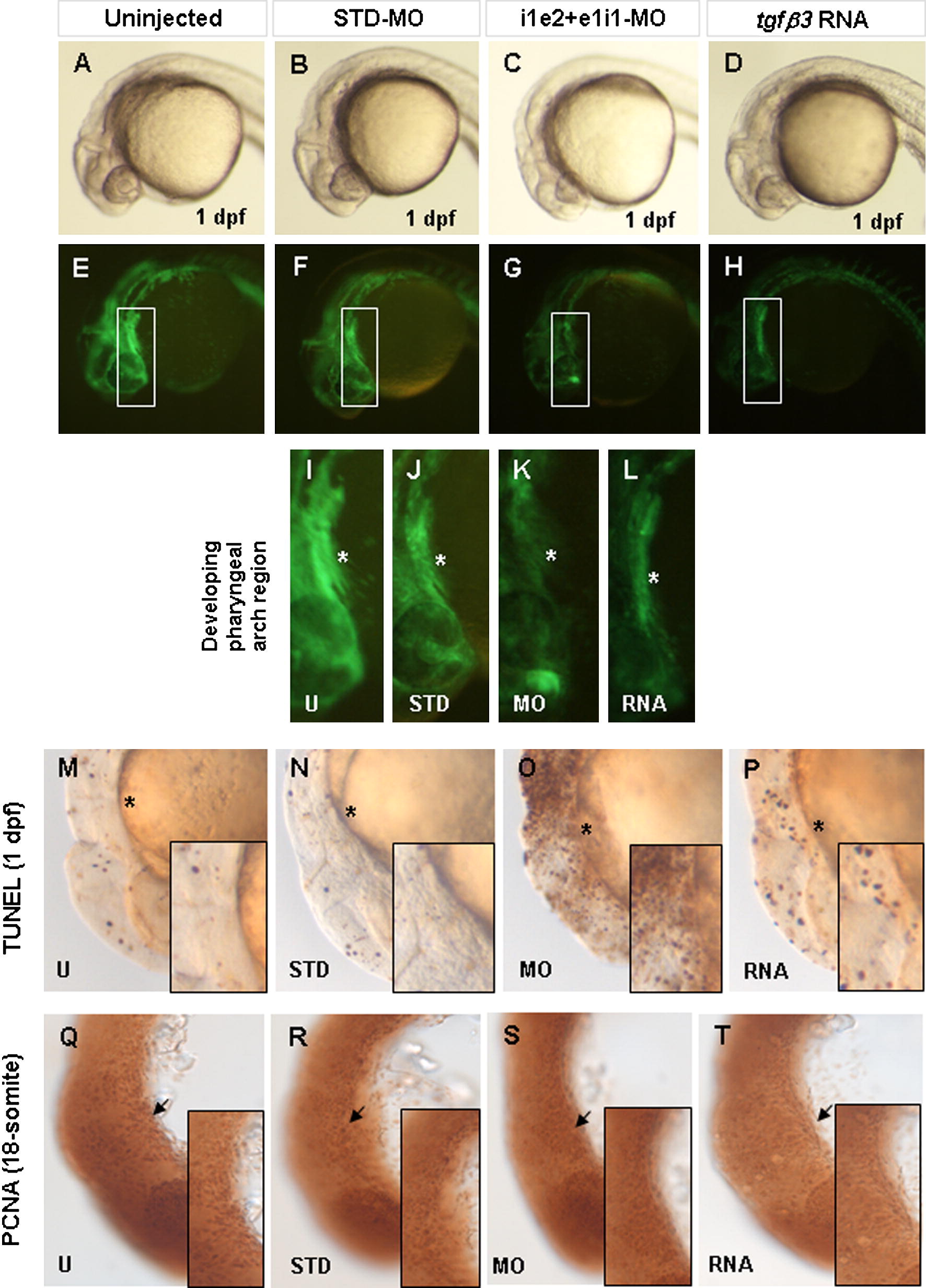

Fig. 7 Effect of loss and over-expression of tgfβ3 on apoptosis and cellular proliferation. Whole-mount lateral (A–P) and flat-mount lateral (Q–T) views are shown in brightfield (A–D, M–T) and darkfield (E–L). The fli1a:gfp transgene is highly expressed in CNC-derived cells of the developing pharyngeal arch of uninjected (A, E, I) and STD-MO injected (B, F, J) transgenic 1 dpf embryos (asterisk). Injection of i1e2 and e1i1-MOs (C, G, K) or tgfβ3 RNA (D, H, L) leads to a visible reduction in transgene expressing cells. TUNEL analysis reveals a marked increase in apoptotic cells in double knockdown embryos (O) compared with uninjected (M) or STD-MO injected (N) embryos, while over-expressing embryos (P) showed a slight increase in apoptotic cells. PCNA immunohistochemistry of 18-somite stage embryos shows similar numbers of PCNA positive cells (arrow) in uninjected (Q), STD-MO injected (R), double knockdown morphant (S), and over-expressing (T) embryos. Insets in M–T show the zoom-in view of the developing pharyngeal arch region.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 128(7-8), Cheah, F.S., Winkler, C., Jabs, E.W., and Chong, S.S., tgfbeta3 Regulation of Chondrogenesis and Osteogenesis in Zebrafish is Mediated Through Formation and Survival of a Subpopulation of the Cranial Neural Crest, 329-344, Copyright (2010) with permission from Elsevier. Full text @ Mech. Dev.
