Fig. 1

ID
ZDB-IMAGE-100616-92
Genes
Antibodies
Source
Figures for Insinna et al., 2010
Figure Caption

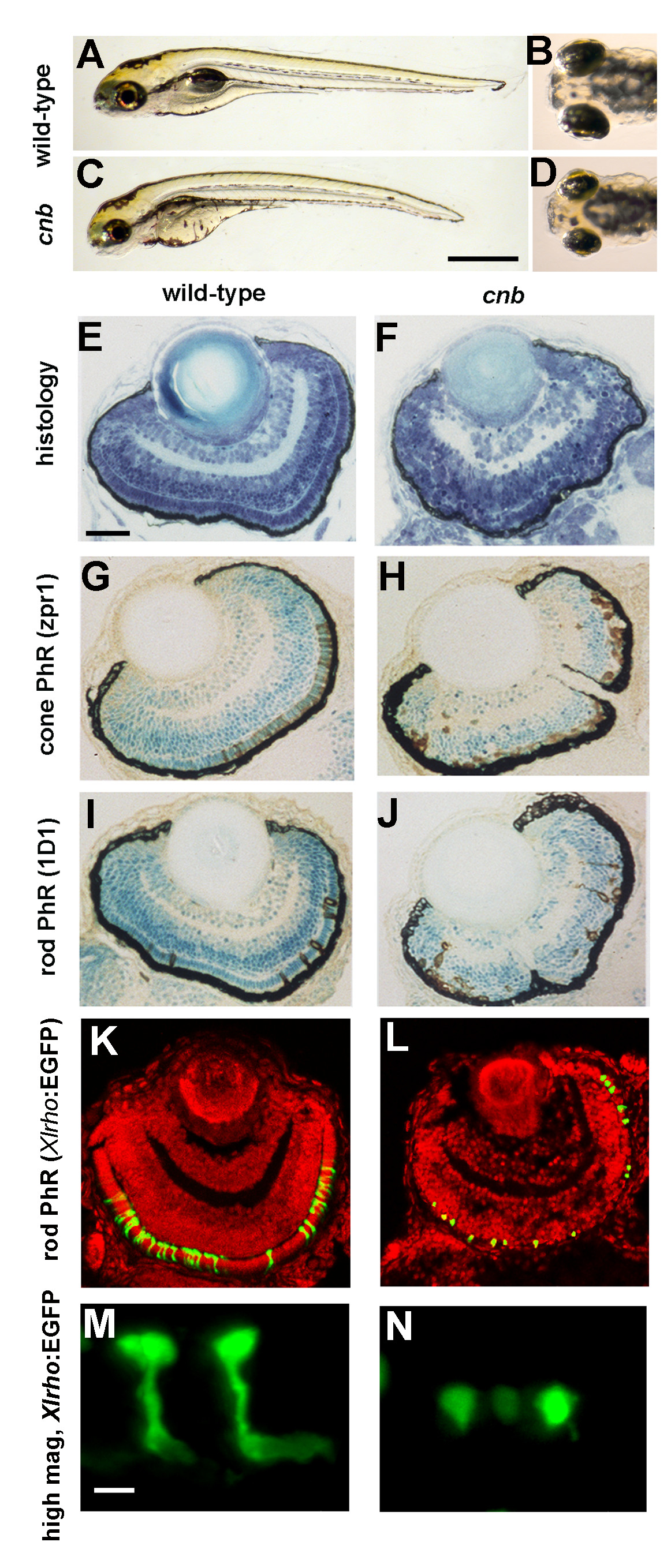

Fig. 1 The cnb mutation disrupts photoreceptor development. (A-D) Side (A, C) and dorsal (B, D) views of 5-dpf wild-type (A, B) and cnb mutant (C, D) embryos. (E-F) Retinal histology of wild-type (E) and cnb (F) retina at 4 dpf. (G, H) Zpr-1 immunoreactivity (brown) to label double cone photoreceptors (PhR) in 4-dpf wild-type (G) and cnb embryos (H). (I, J) ID1 immunoreactivity (brown) to label rod photoreceptors in 4-dpf wild-type (G) and cnb embryos (H). Nuclei in (G, H) are counterstained with methylene blue. (K-N) Confocal microscopy of wild-type (K, M) and cnb (L, N) whole retina (K, L) and individual rod photoreceptor cells (M, N) from Tg(Xlrho:EGFP)fl1 fish. Green, Xlrho:EGFP-positive cells; red, propidium iodide positive nuclei. Scale bars: 1 mm in (A, C); 40 μm in (E-L); 5 μm in (M, N). EGFP, enhanced green fluorescent protein.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Neural Dev.
