Fig. 8

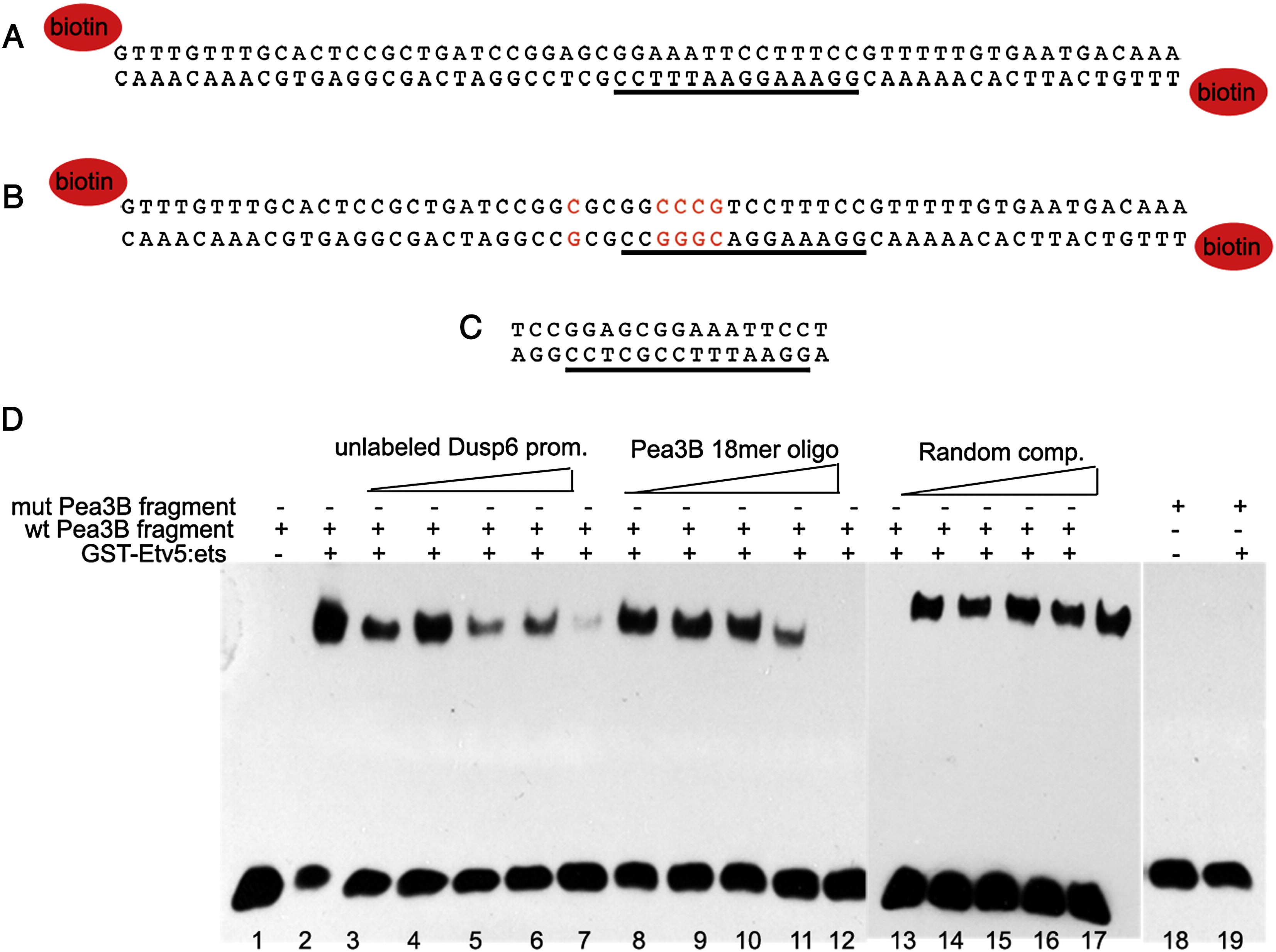

Fig. 8 Etv5-ETS domain binds to the Dusp6 promoter. (A) Biotin labeled PCR product. (B) Biotin labeled mutant Pea3B Dusp6 promoter fragment. (C) Pea3B 18 bp fragment used in competition assays. Underlined sequence represent the putative Pea3B binding site (D) EMSA using 60 bp Dusp6 promoter biotin fragment and GST-Etv5:ETS protein. The Etv5-ETS domain bound to the 60 bp Dusp6 promoter containing the Pea3B site (lane 2). This binding was competed with the non-biotin labeled 60 bp Dusp6 promoter (lanes 3–7) and the Pea3B 18 bp fragment (lanes 8–12). A random oligonucleotide sequence did not compete this binding (lanes 13–17). Binding of Etv5-ETS to the Pea3B mutant Dusp6 promoter was not observed (lanes 18–19).
