Fig. 10

ID
ZDB-IMAGE-100616-101
Source
Figures for Insinna et al., 2010
Figure Caption

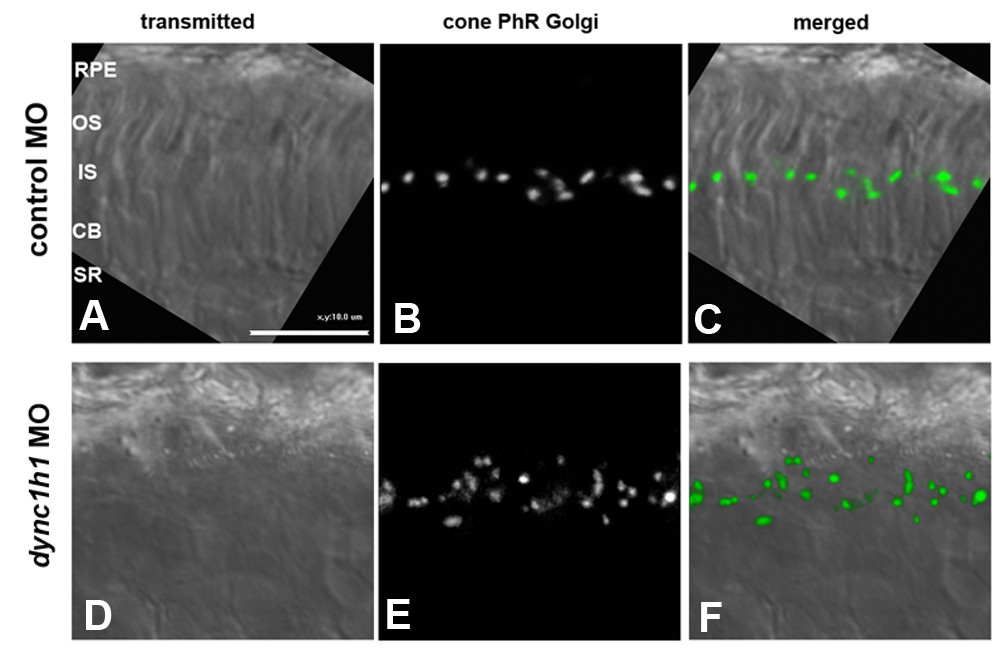

Fig. 10 Localization of Golgi apparatus in dync1h1 morphants. (A-F) Expression of a tol2-based gnat2:Man2a(1-100aa)-GFP construct in either control morphants (3 ng/embryo) (A-C) or dync1h1 morphants (3 ng/embryo) (D-F). Cryosections of the photoreceptor (PhR) layer at 4 dpf is shown. Embryos were treated with phenylthiourea to block pigment synthesis. Note that disorganization and mis-positioning of the Golgi apparatus in dync1h1 morphants. CB, cell body; IS, inner segment; MO, morpholino; OS, outer segment; RPE, retina pigment epithelium; SR, synaptic region.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Neural Dev.
