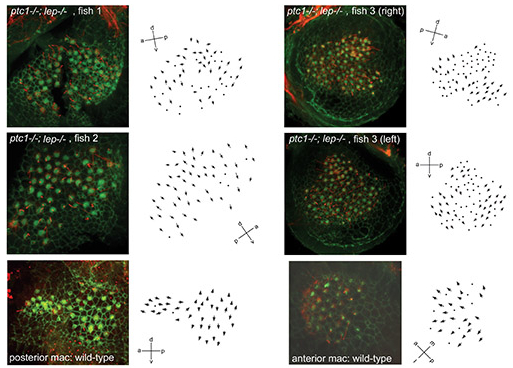

Fig. S3 The single medial macula of ptc1^-/-; lep^-/- embryos has double posterior character. Merged confocal z-stacks of maculae of 3 dpf ptc1^-/-; lep^-/- and wild-type embryos stained with FITC-phalloidin (green) to reveal the actin in the stereociliary bundles of the hair cells and with anti-acetylated tubulin antibody (red) to reveal the kinocilia. Arrows show polarity maps for each macula. Hair bundles point away from a midline in both the anterior and posterior halves of the ptc1^-/-; lep^-/- maculae, resembling the pattern seen in wild-type posterior maculae. a, anterior; d, dorsal; m, medial; mac, macula; l, lateral; p, posterior; v, ventral.
