ZFIN Image: Christie et al., 2010, Fig. 2


Figure Caption

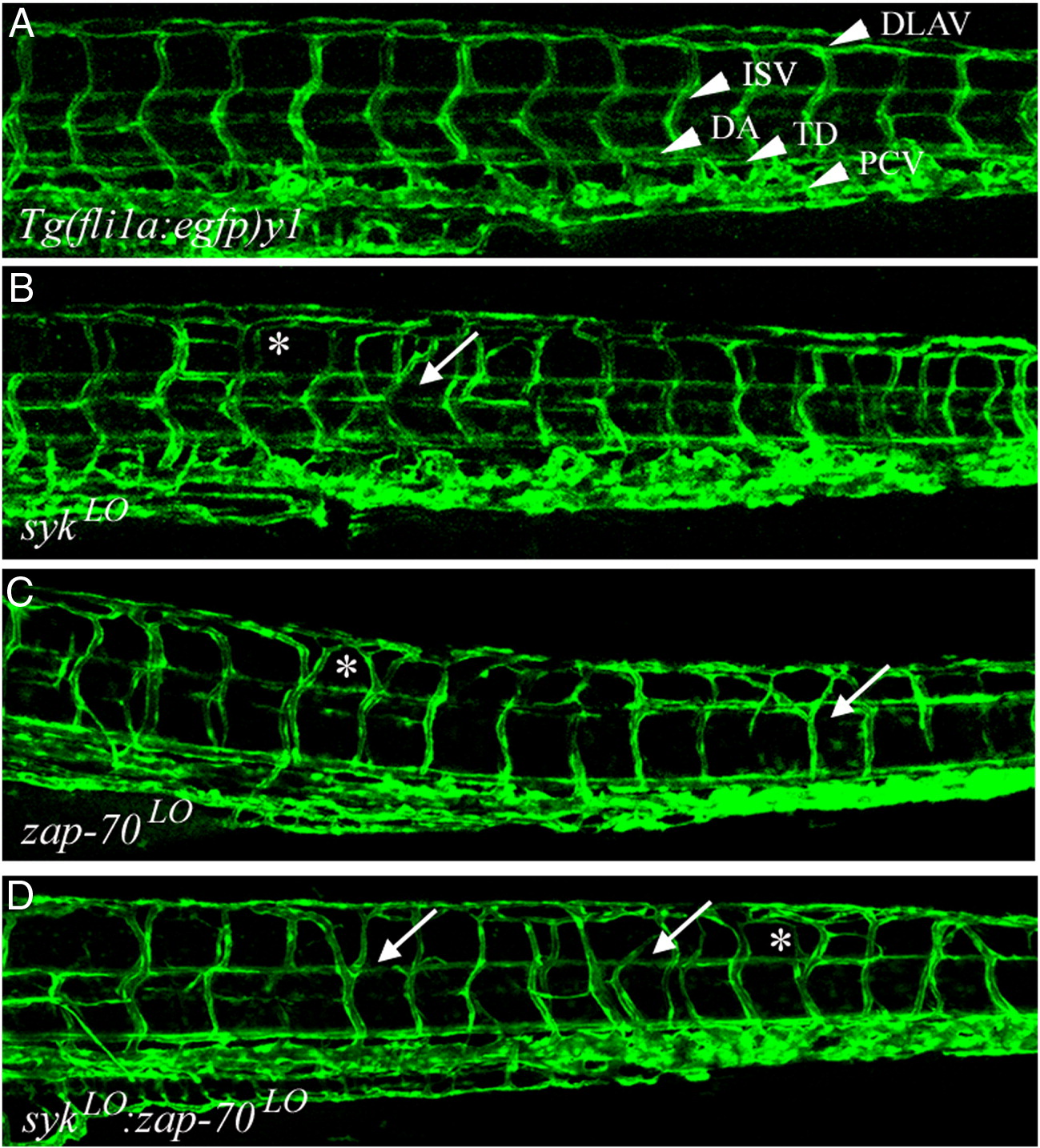

Fig. 2 syk^LO and zap-70^LO morphants display late stage ISV patterning defects. (A) The trunk of 5 dpf wild-type Tg(fli1a:EGFP)^y1 embryos display regularly patterned ISVs between somites, with the dorsal-most ISV endothelial cell forming a clear T shape and contributing to the DLAV. In contrast, 5 dpf syk^LO (B), zap-70^LO (C), and syk^LO:zap-70^LO (D) morphants display abnormal ISV vasculature with mild patterning defects. The ventral stalk ISV endothelial cell is relatively normal, and the dorsal T-cell still contributes to the DLAV, but the branching of the cell into the T shape is abnormal (asterisks) and can occur as ventrally as midsomite (arrows). These dorsal patterning defects are more pronounced in the syk^LO:zap-70^LO morphants.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 340(1), Christie, T.L., Carter, A., Rollins, E.L., and Childs, S.J., Syk and Zap-70 function redundantly to promote angioblast migration, 22-29, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
