Fig. 6
|
Figure Caption

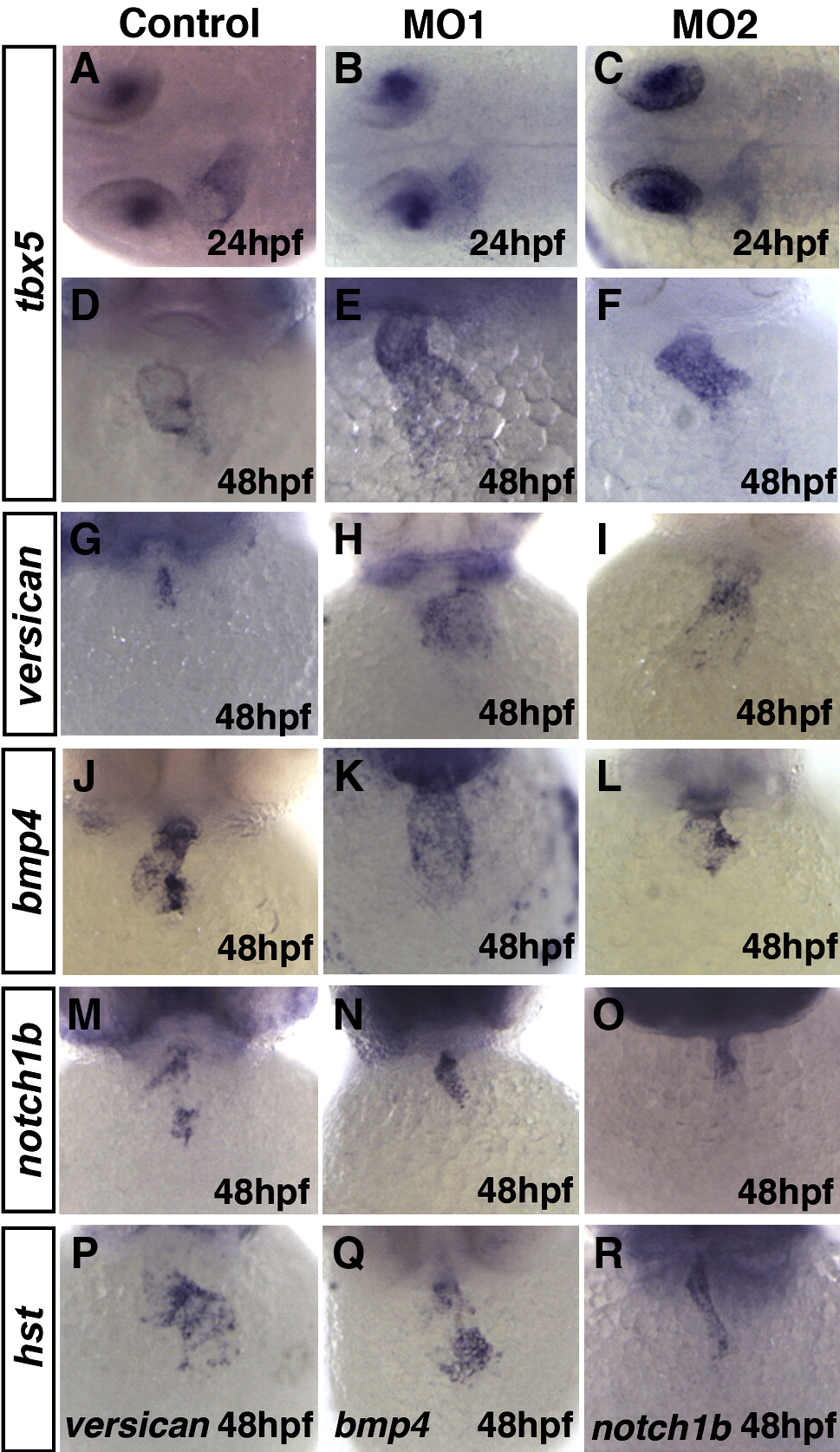

Fig. 6 Pdlim7 is required for AV boundary specification. (A–F) In situ hybridization of tbx5 at 24 hpf (A-C) and 48 hpf (D–F) in wild-type (A, D), MO1 (B, E), and MO2 (C, F) injected embryos. (G-O) Expression at 48 hpf of versican (G-I), bmp4 (J-L), and notch1b (M-O). (P-R) Expression of AV boundary markers in hst homozygous embryos.
