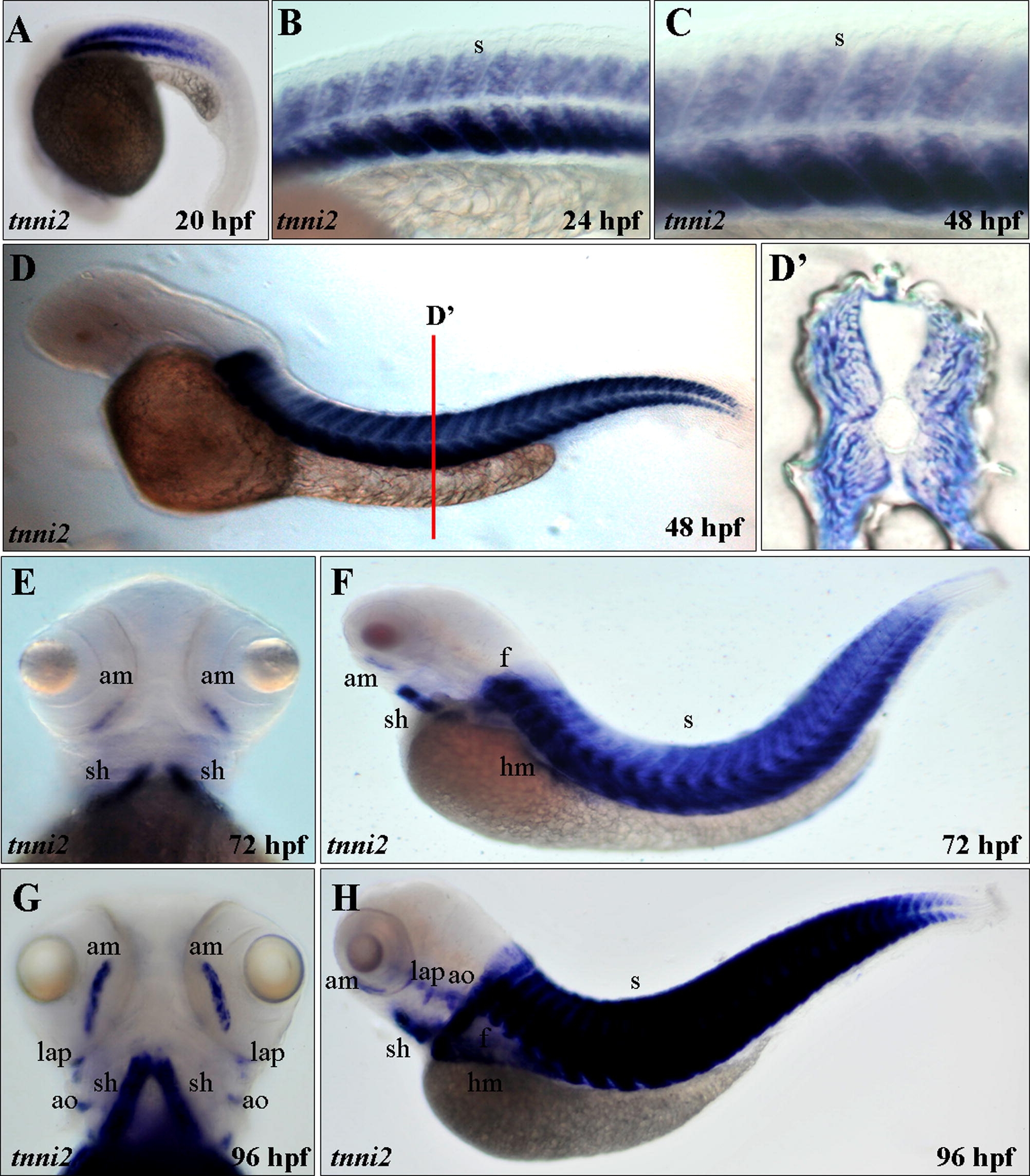

Fig. 5 The expression pattern of tnni2 transcript during the development of zebrafish embryos. Embryos at different stages as indicated were collected and hybridized with tnni2 using whole-mount in situ hybridization. Panels A, B, C, D, F and H were lateral views and anterior of embryo to the left; and panel E and G were dorsal view and anterior of embryo to the top. tnni2 was expressed in the somite at 20–48 hpf, then it was expressed in craniofacial muscle and fin at 72–96 hpf. Panel D and D′ were whole-mount in situ hybridization and transverse section (red line) at 48 hpf Embryos. Panel D′ was indicated that tnni2 gene was fast-muscle-specific. am, adductor mandibulae; lap, levator arcus palatini; ao, adductor operculi; hm, hapaxial muscles; sh, sternohyoideus; s, somite; f, fin bud.
