Fig. 3

ID
ZDB-IMAGE-090804-33
Source
Figures for Tao et al., 2009
Figure Caption

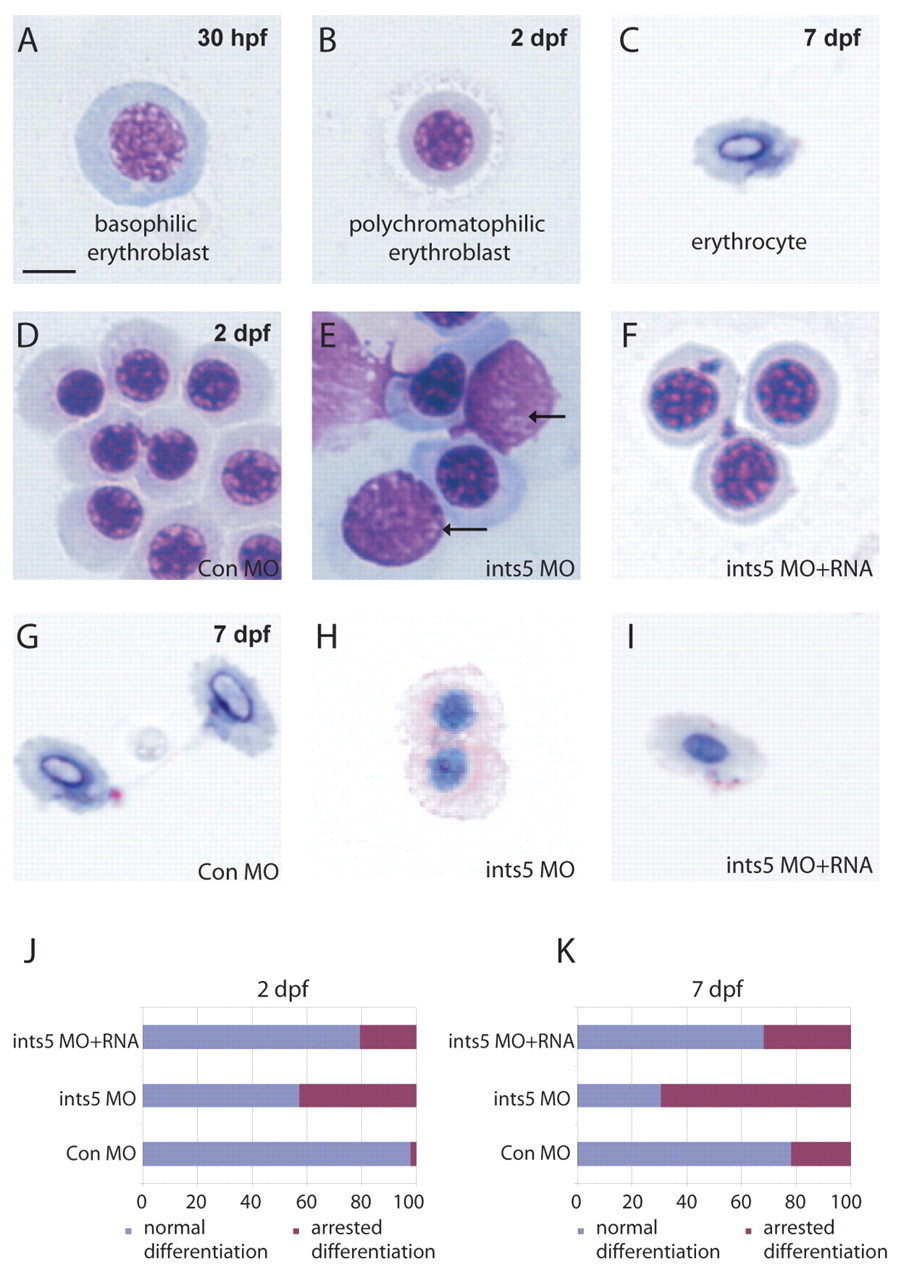

Fig. 3 Ints5 is required for erythrocyte differentiation. (A-C) May-Grunwald Giemsa staining shows normal red blood cells (RBCs) at various stages of differentiation at the indicated embryonic stages. (D-F) RBCs in embryos injected with control morpholinos (D), ints5 morpholinos (E), or co-injected with ints5 RNA and morpholinos (F) at 2 dpf. Arrows indicate the RBCs arrested at the basophilic erythroblast stage (E). (G-I) RBCs in embryos injected with control morpholinos (G), ints5 morpholinos (H), or co-injected with ints5 RNA and morpholinos (I) at 7 dpf. (J,K) Histograms showing the percentage of RBCs with normal (blue) or arrested (magenta) differentiation in injected embryos at 2 dpf (J) and 7 dpf (K). Scale bar: 10 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
