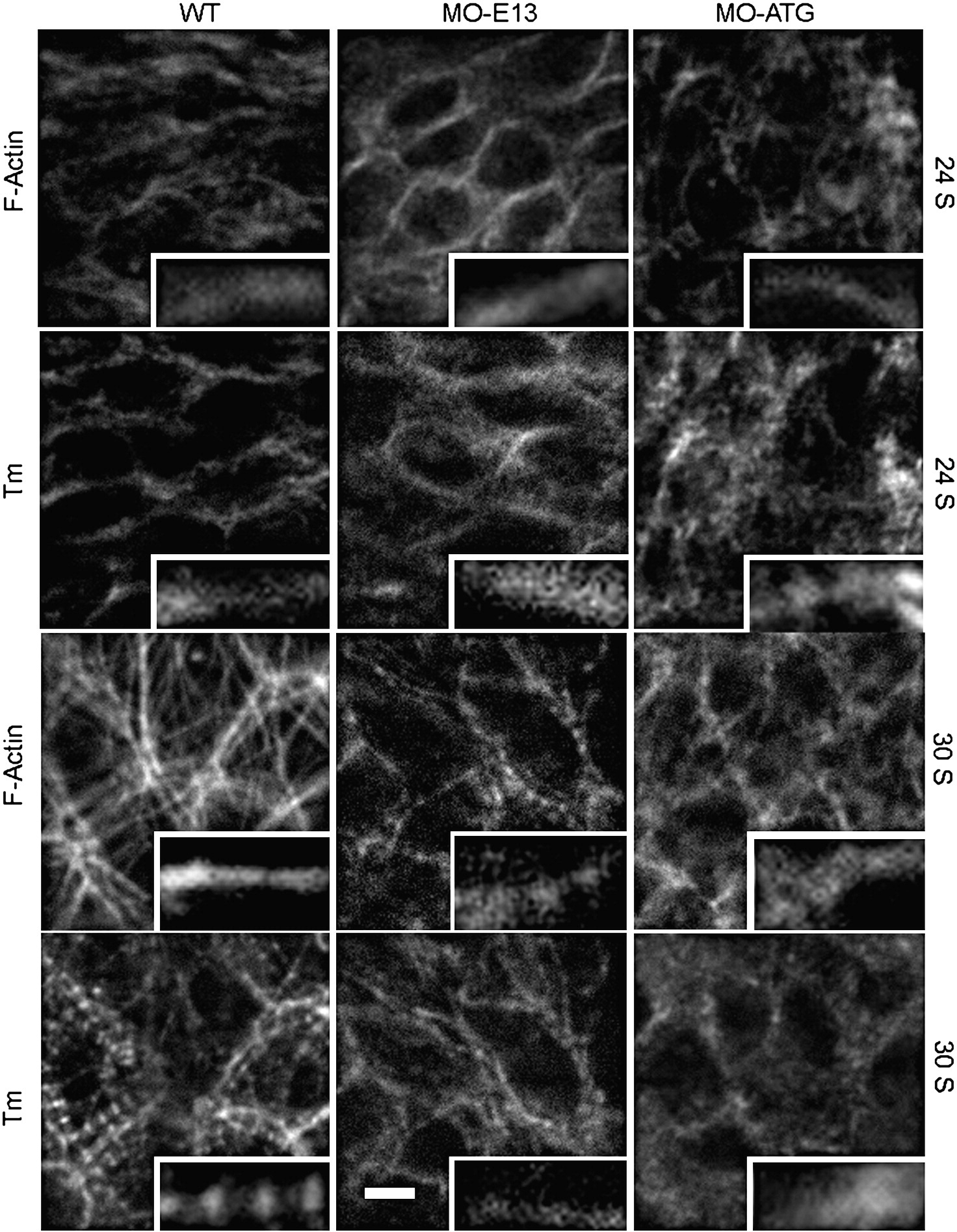

Fig. S3 Thin filament assembly in morphants at an early stage revealed by immunostaining for F-actin and Tm. Assembly of continuous thin filaments was not affected in either MO-ATG or MO-E13 morphants at 24 S. Thin filaments remained as continuous filaments at 30 S in MO-ATG morphants while both F-actin and Tm exhibit a striated pattern in the WT control and MO-E13 morphants. Scale bar = 5 μm.
