Fig. 3

ID
ZDB-IMAGE-090602-2
Source
Figures for Froehlicher et al., 2009
Figure Caption

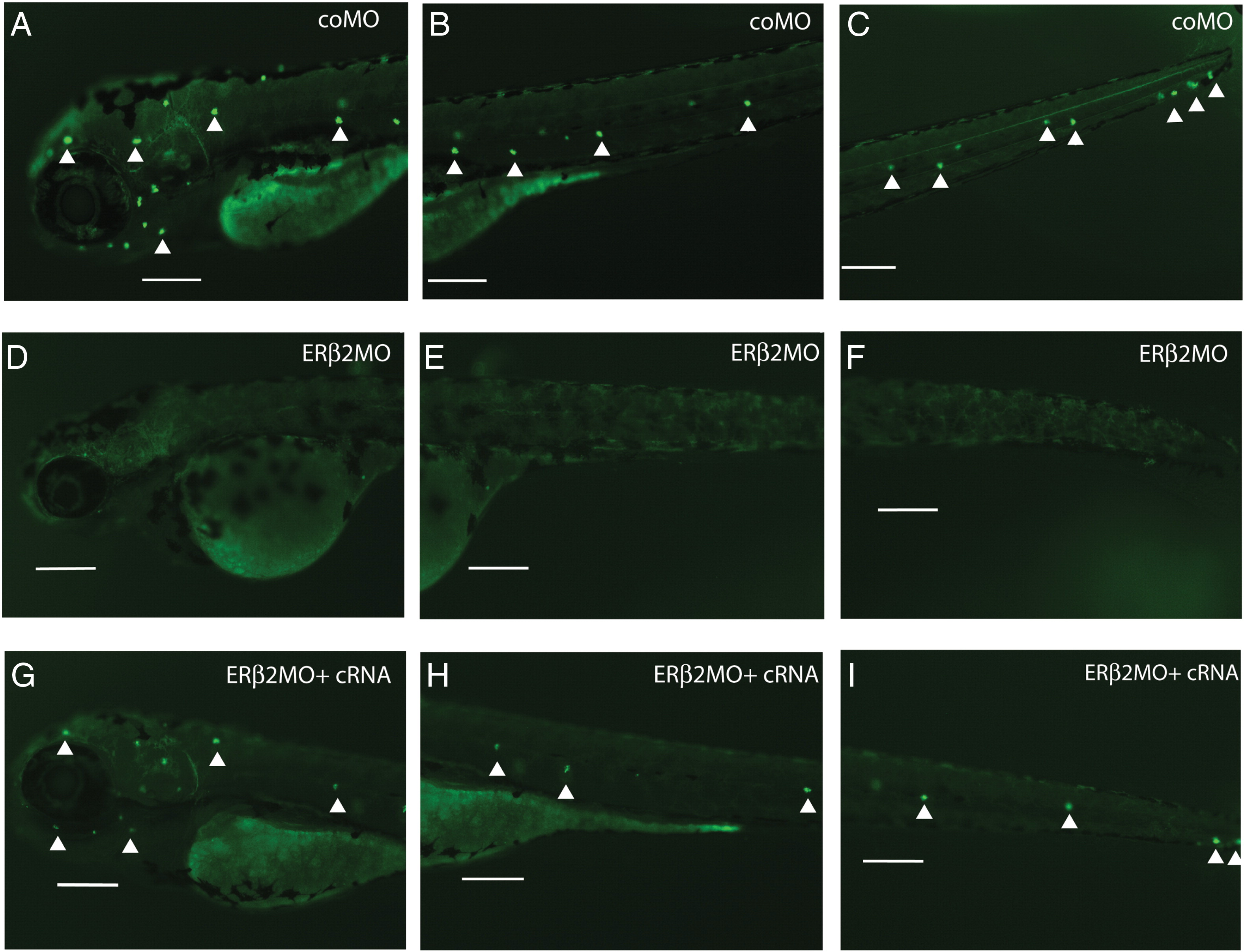

Fig. 3 Neuromast detection with live staining (FM1-43) in 72 hpf larvae. (A-C) Larvae injected with coMO at 15 μM. (D-F) Larvae injected with ERβ2 MO at 15 μM. (G-I) Larvae injected with ERβ2 MO at 15 μM and cRNA at 300 ng. Arrowheads point to neuromasts with functional hair cells. Scale bar = 200 μM.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 330(1), Froehlicher, M., Liedtke, A., Groh, K., Lopez-Schier, H., Neuhauss, S.C., Segner, H., and Eggen, R.I., Estrogen receptor subtype beta2 is involved in neuromast development in zebrafish (Danio rerio) larvae, 32-43, Copyright (2009) with permission from Elsevier. Full text @ Dev. Biol.
