Fig. 6

ID
ZDB-IMAGE-090519-12
Genes
Source
Figures for Kitaguchi et al., 2009
Figure Caption

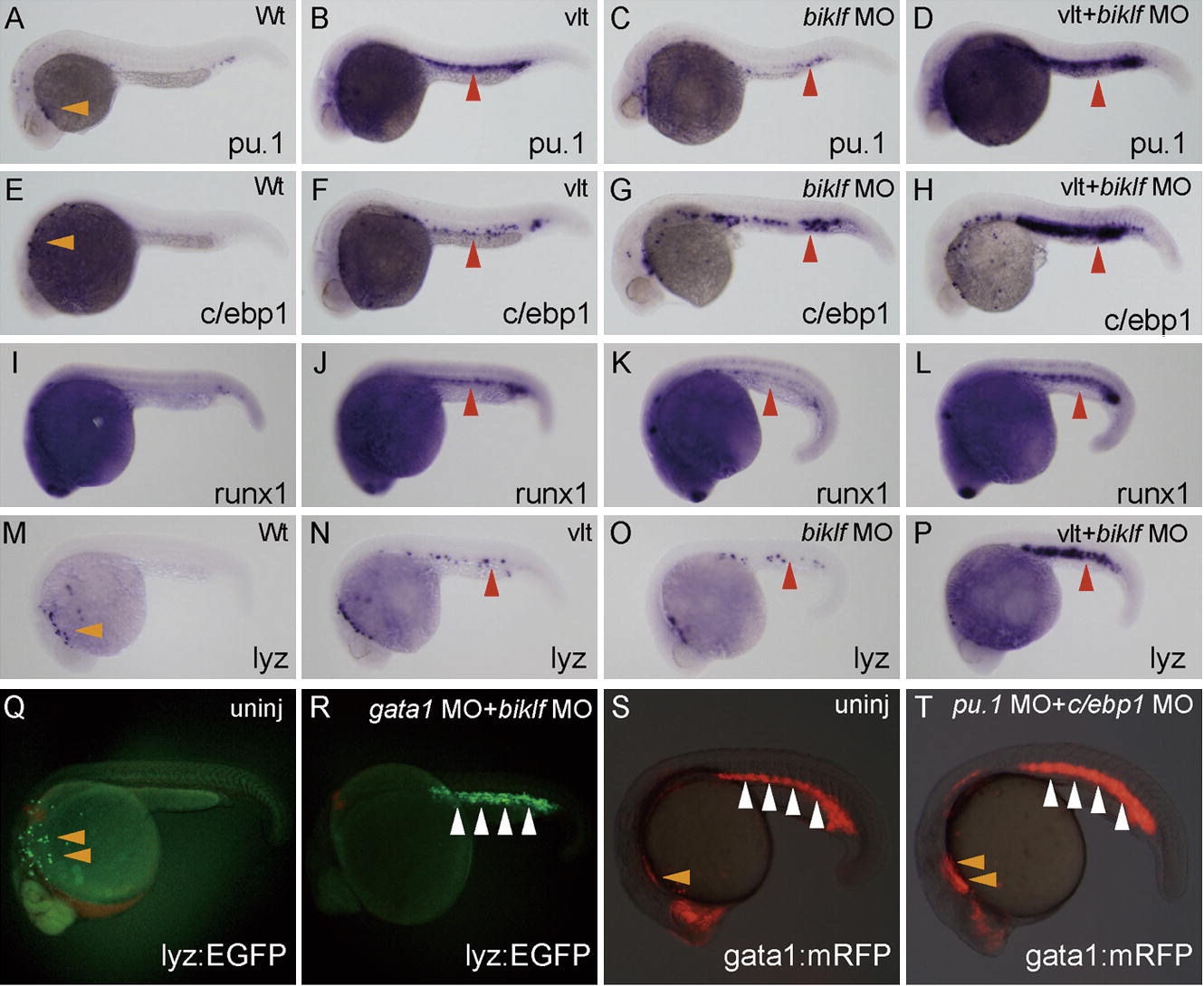

Fig. 6 Suppression of erythroid-lineage factors biklf and gata1 strongly induces ectopic lyz expression in the ICM. (A–P) All embryos are around 24 hpf and lateral view; anterior is left. Morpholinos (biklf MO; 10 ng) were injected into one-cell stage embryos from wild-type or vlad tepes (vlt)/gata1 mutant, and the expression of myeloid markers was examined by whole-mount in situ hybridization; marker is shown at bottom right. Genome DNA was prepared from the stained embryos after taking pictures, and genotyping of vlt was performed. The myeloid markers, pu.1, c/ebp1, runx1 and lyz are expressed in myeloid cells over the yolk (orange arrowheads) (A, E and M). The expression of pu.1, c/ebp1, runx1 and lyz was weakly induced in the ICM (red arrowheads) in vlt embryos or biklf MO-injected embryos. When biklf MO was injected into vlt embryos, the markers (pu.1, c/ebp1, runx1 and lyz) were strongly induced in the ICM (red arrowheads). (Q and R) EGFP expression is detected in myeloid cells (orange arrowheads) in uninjected embryo from Tg(lyz:EGFP)ko02. EGFP expression at 23 hpf stage was significantly induced in the ICM (white arrowheads), when morpholinos (gata1 MO; 10 ng + biklf MO; 10 ng) were injected into one-cell stage embryos of Tg(lyz:EGFP)ko02. (S and T) mRFP expression in the ALPM (orange arrowheads) at 23 hpf stage was slightly increased, when morpholinos (pu.1 MO; 10 ng + c/ebp1 MO; 10 ng) were injected into one-cell stage embryos of Tg(gata1:mRFP)ko05.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 126(5-6), Kitaguchi, T., Kawakami, K., and Kawahara, A., Transcriptional regulation of a myeloid-lineage specific gene lysozyme C during zebrafish myelopoiesis, 314-323, Copyright (2009) with permission from Elsevier. Full text @ Mech. Dev.
