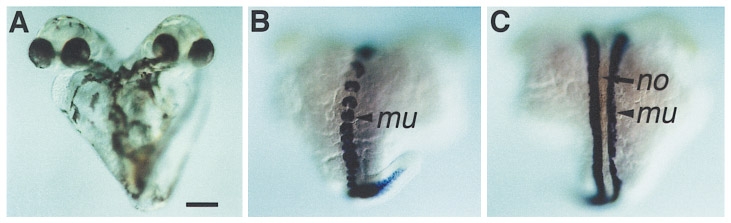

Fig. 8 Incomplete axis formations in janus-mutant embryos. (A–C) janus-mutant embryos with complete anterior bifurcation. (A, D) janus-mutant embryos at Day 2 of development. (B) alpha-tropomyosin expression within the incomplete axis addition on the ventral side at the end of somitogenesis. (C) alpha-tropomyosin expression on the dorsal side. (A –C) Lateral view. mu, myotome expression domain of alpha-tropomyosin; no, notochord. Scale bars are 250 μm.
