Fig. 7

ID
ZDB-IMAGE-090127-25
Genes
Antibodies
Source
Figures for Targoff et al., 2008
Figure Caption

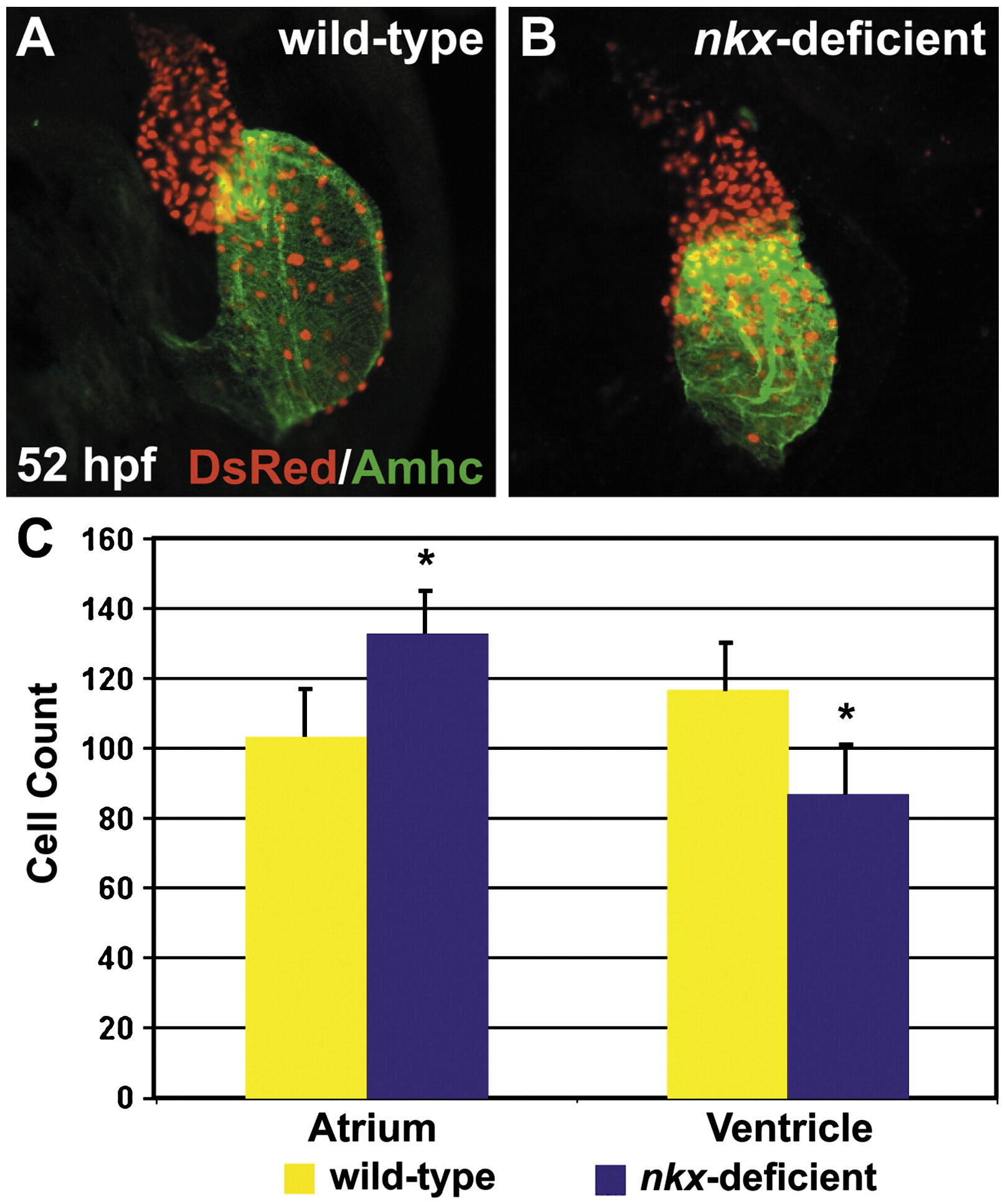

Fig. 7 nkx genes are necessary to establish sufficient ventricular cell number during cardiac chamber formation. (A,B) Immunofluorescence indicates that both chambers express the transgene Tg(cmlc2:DsRed2-nuc) (red), facilitating cardiomyocyte counting at 52 hpf. Atria are labeled with the anti-Amhc antibody, S46 (green). Hearts are flattened with a cover slip to improve visualization of cardiomyocyte nuclei. (C) Quantification of cardiomyocyte nuclei in wild-type (n = 10) and nkx-deficient (n = 13) embryos reveals a statistically significant increase in atrial cell number in nkx-deficient embryos (p < 0.001, Student's t-test) and a statistically significant decrease in ventricular cell number in nkx-deficient embryos (p < 0.001, Student's t-test). Bar graph indicates mean and standard error of each data set; asterisks indicate statistically significant differences from wild-type.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 322(2), Targoff, K.L., Schell, T., and Yelon, D., Nkx genes regulate heart tube extension and exert differential effects on ventricular and atrial cell number, 314-321, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
