Fig. 5

ID

ZDB-IMAGE-081218-8

Genes

lft1
spaw

Publication

Wang et al., 2008 - Initiation and propagation of posterior to anterior (PA) waves in zebrafish left-right development

All Figures

Figures for Wang et al., 2008


Figure Caption

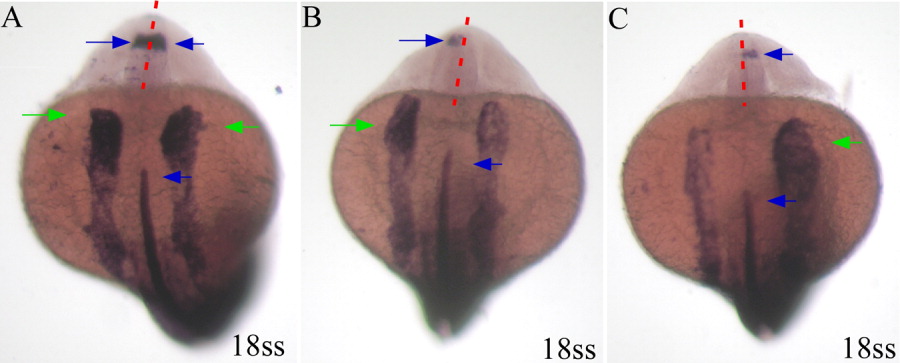

Fig. 5 Correlation between orientation of the leading edge of spaw in the lateral plate mesoderm (LPM) and the orientation of lft1 in the brain in lft1 morphants. A: Majority of the morphants had bilaterally equivalent spaw expression in LPM (n = 16) and bilateral lft1 expression in brain. B: In the morphants with stronger spaw expression in the left LPM, lft1 expression was observed only in the left side of the brain (n = 12). C: In morphants with stronger spaw in the right LPM, lft1 expression was observed only in the right side of the brain (n = 3). Red dot line: midline; blue arrow: lft1; green arrow: spaw.
