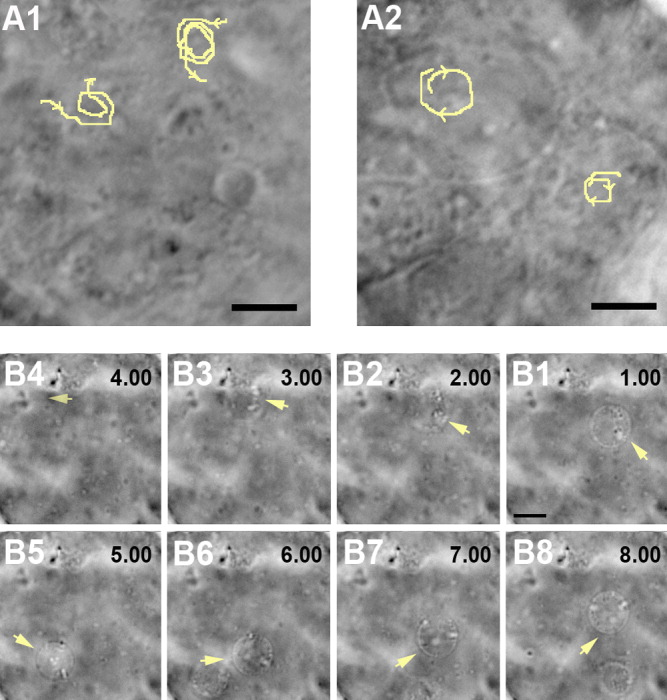

Fig. 4 Specification of local flow around individual cilium and dominant net flow inside Kupffer's vesicle. A1,A2: Counterclockwise movements of beads closest to the dorsal roof (A1), and clockwise movements of the beads closest to the ventral floor (A2) at 5-somite stage. Trajectories of beads movements are indicated in yellow. B1-B8: The dominant counterclockwise flow in the middle of the vesicle observed by the movement of a bubble (arrows) at 9-somite stage. There is a 1-sec interval between stills. Posterior side of the embryo is to the right in (B). Scale bars = 4 μm in A1-A2, 8 μm in B1-B8.
