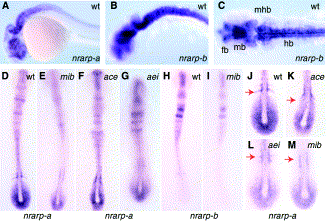

Fig. 3 Expression pattern of nrarp a and b in 1 day old wild-type embryos and altered expression in mutants at 11 somite stage shown by in situ hybridization. Lateral (A, B) and (C) dorsal view of flat mounted embryos. (D–G) Expression of nrarp a at 11 somite stage in (D) wild type embryos; (E) mib; (F) ace; and (G) aei. (H, I) Expression of nrarp b in wild type embryos (H) and (I) mib. (J–K) Higher magnification of PSM region in the same mutants (red arrows indicate nrarp a expression in the anterior part of somite primodia in wild type) (J) and (K) ace (L) aei and (M) mib. Abbreviations: fb, forebrain; hb, hindbrain; mb, midbrain; and mhb, midbrain-hindbrain boundary.
