Fig. 7

ID
ZDB-IMAGE-080828-73
Genes
Source
Figures for Yanicostas et al., 2008
Figure Caption

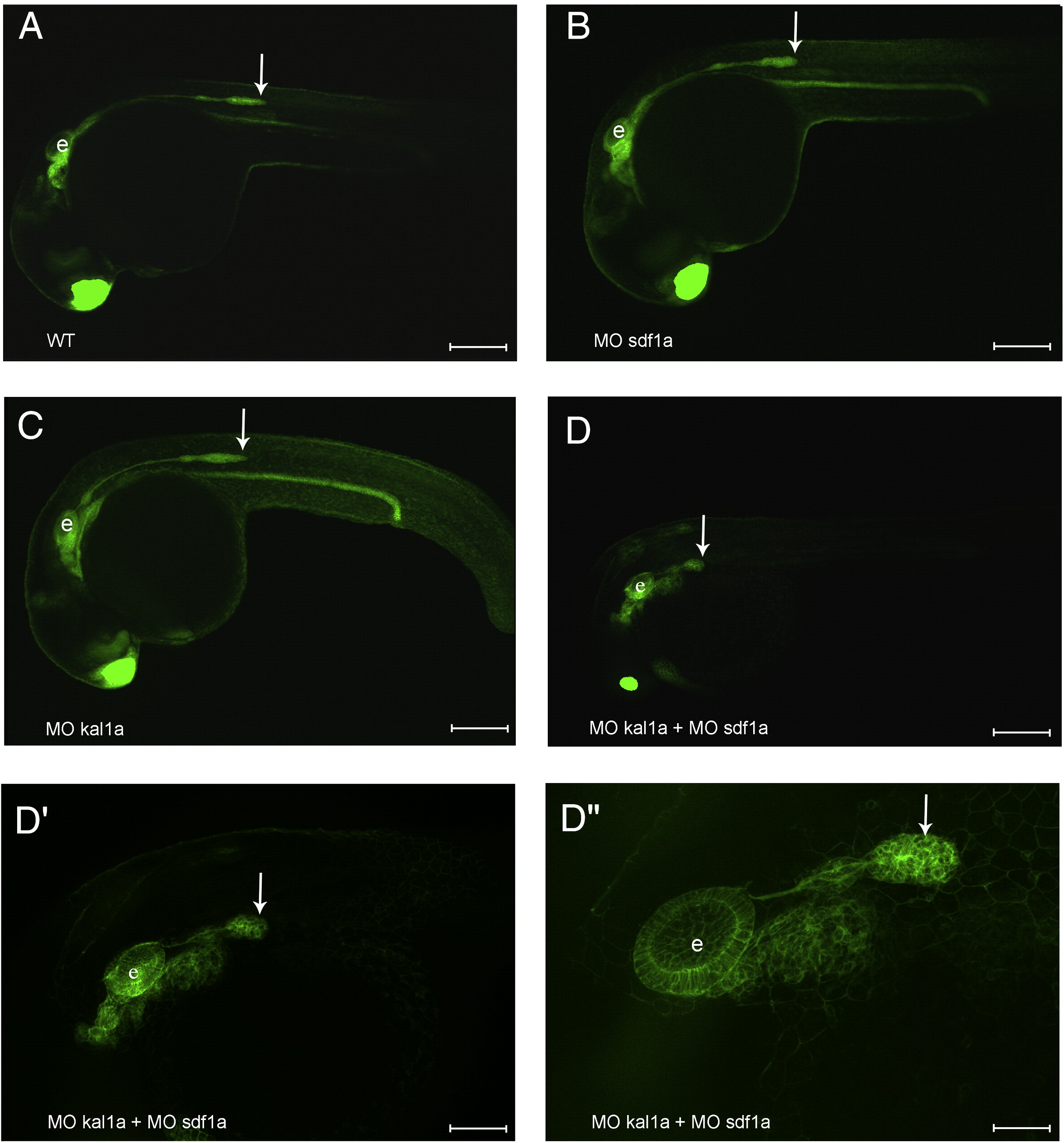

Fig. 7 Moderate depletion of both anosmin-1a and SDF1a markedly affects PLLP migration. 26 hpf ClaudinB::GFP embryo (A) and ClaudinB::GFP embryos injected with MO sdf1a (0.1 mM) (B), MO kal1a (0.1 mM) (C) or co-injected with a mix of MO sdf1a and MO kal1a (0.1 mM each) (D). Magnified views the primordium of the embryo shown in panel D (D′ and D″). Arrows indicate the PLLP. e: ear. Scale bar = 200 ′m in panels A–C, 300 ′m in panel D, 100 μm in panel D′ and 50 μm in panel D″.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 320(2), Yanicostas, C., Ernest, S., Dayraud, C., Petit, C., and Soussi-Yanicostas, N., Essential requirement for zebrafish anosmin-1a in the migration of the posterior lateral line primordium, 469-479, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
