Fig. S2

ID
ZDB-IMAGE-080710-8
Genes
Source
Figures for Martinez-Morales et al., 2005
Figure Caption

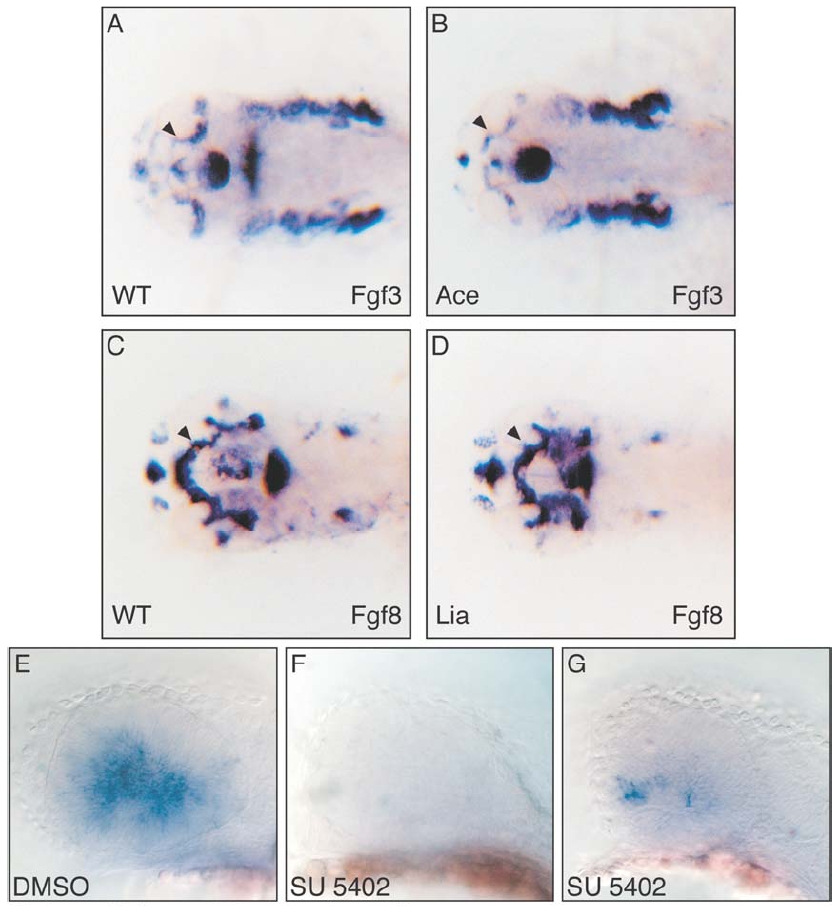

Fig. S2 Expression of Fgf3 and Fgf8 in zebrafish Fgf mutant embryos. The expression of Fgf3 and Fgf8 was analyzed in Ace/Fgf8 and Lia/Fgf3 mutant embryos, respectively. No difference was observed in the expression of these genes in the optic stalk region, indicated by arrowheads (compare A with B, and C with D). This excludes any feedback cross regulation or genetic hierarchy between these two genes in this domain.

Inhibition of Fgf signalling prevents Ath5 expression at 32 hpf. Drug treatment with the Fgf inhibitor SU5402 abolishes or strongly reduces Ath5 expression (compare E with F and G). Embryos where treated from 23 to 32 hpf. The mock DMSO treated embryos showed always an extended Ath5 expression (E, 12 out of 12) while the SU5402 treatment either prevents Ath5 expression (F, 5 out of 11) or results in a strongly reduced expression (G, 6 out of 11).
