Figure Caption

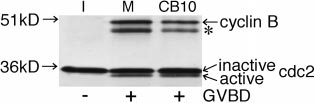

Fig. 8 Anti-Cdc2 and anti-cyclin B immunoblots of Suc1- precipitates from oocyte extracts, showing Cdc2 and cyclin B forming a complex with Cdc2. An inactive Cdc2, but not cyclin B, is seen in immature oocytes (I). In addition to the inactive Cdc2, an active Cdc2 and cyclin B forming a complex with it are seen in mature (M) and cytochalasin B (10 μg/ml)-treated (CB10) oocytes, both of which underwent GVBD. The asterisk indicates a proteolytic product of cyclin B during Suc1-precipitation.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 229(2), Kondo, T., Kotani, T., and Yamashita, M., Dispersion of cyclin B mRNA aggregation is coupled with translational activation of the mRNA during zebrafish oocyte maturation, 421-431, Copyright (2001) with permission from Elsevier. Full text @ Dev. Biol.
