Fig. 2

ID
ZDB-IMAGE-080502-20
Genes
Source
Figures for Farooq et al., 2008
Figure Caption

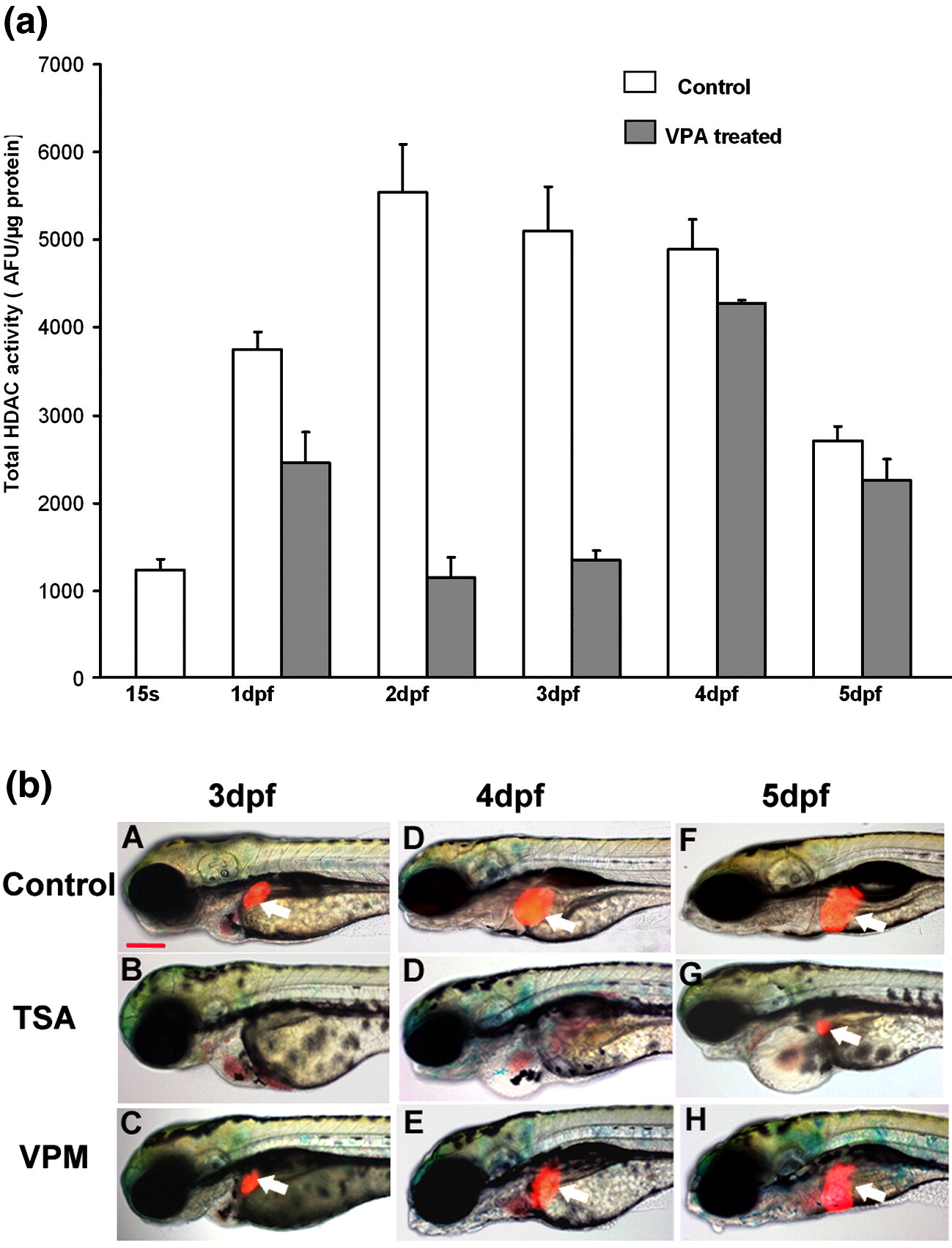

Fig. 2 The liver defects in VPA-treated embryos correlated with inhibition in HDAC enzymatic activity. (a) HDAC enzymatic activity in zebrafish embryos were measured by fluorescent based assay. Embryos were treated (from 15-somite stage) with VPA (20 μM) and harvested at different stages. Total HDAC enzymatic activity was inhibited from 1 dpf onward and maximum reduction (around 75%) was observed at 2–3 dpf in VPA-treated embryos. (b) Embryos from Tg(lfabp:RFP; elaA:EGFP) were treated with TSA (B, D, G), a structurally unrelated HDAC inhibitor, and Valpromide (VPM) (C, E, H), a structural analogue of VPA which does not inhibit HDAC. Liver formation was observed at 3 dpf (A–C), 4 dpf (D–E) and 5 dpf (F–H). No liver was observed in TSA-treated embryos up to 4 dpf (B, D) while a small liver appeared at 5dpf (G, white arrow). Liver formation was unaffected in VPM-treated embryos (C–H, white arrows). All the images are lateral view, anterior to the left. Scale bar is 50 μm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 317(1), Farooq, M., Sulochana, K.N., Pan, X., To, J., Sheng, D., Gong, Z., and Ge, R., Histone deacetylase 3 (hdac3) is specifically required for liver development in zebrafish, 336-353, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
