Fig. 6

ID
ZDB-IMAGE-080325-6
Genes
Source
Figures for Sperber et al., 2008
Figure Caption

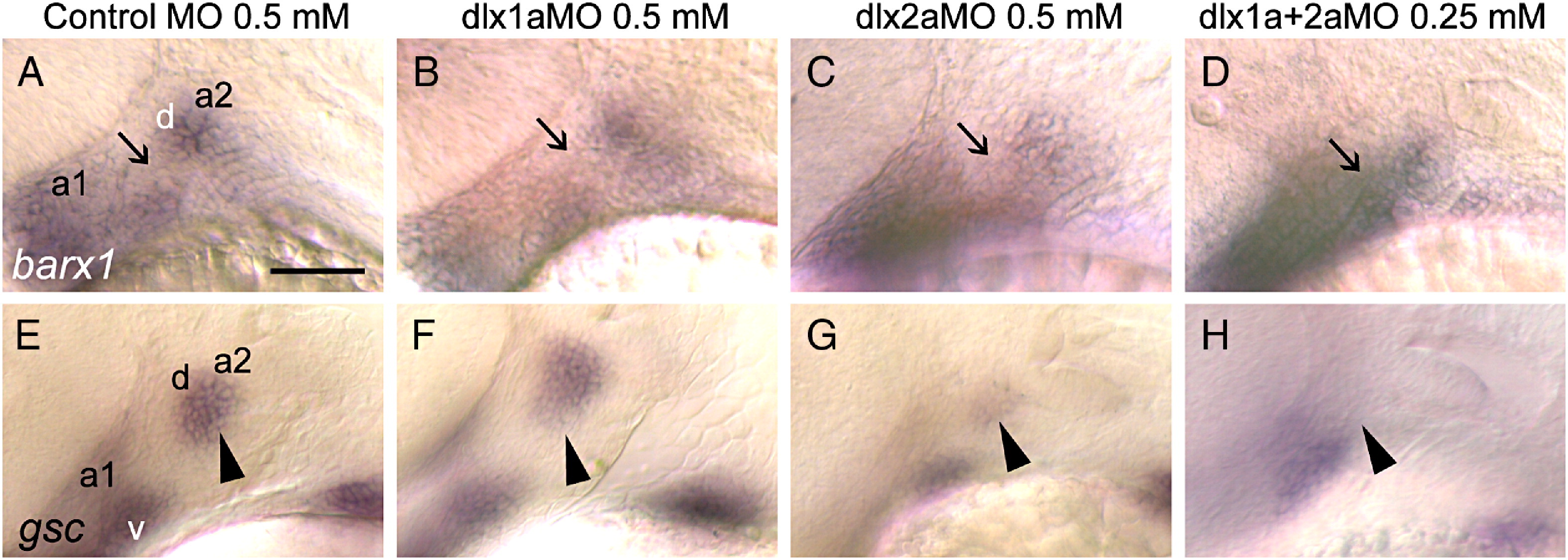

Fig. 6 Loss of dlx2a but not of dlx1a function perturbs barx1 and goosecoid (gsc) expression in the developing second arch (a2) at 48 hpf. (A, E) Control MO 0.5 mM; (B, F) dlx1aMO 0.5 mM; (C, D) dlx2aMO 0.5 mM; (D, H) dlx1aMO + dlx2aMO 0.25 mM each. (A–D) barx1 expression; arrow indicates the intermediate region. (E–H) gsc expression in lateral views, arrowhead indicates location of the dorsal expression domain in the morphants. a1, first arch; a2, second arch; d, dorsal expression domain; v, ventral expression domain. Scale bar: 50 μm.
