Fig. 5

ID
ZDB-IMAGE-080325-5
Genes
Source
Figures for Sperber et al., 2008
Figure Caption

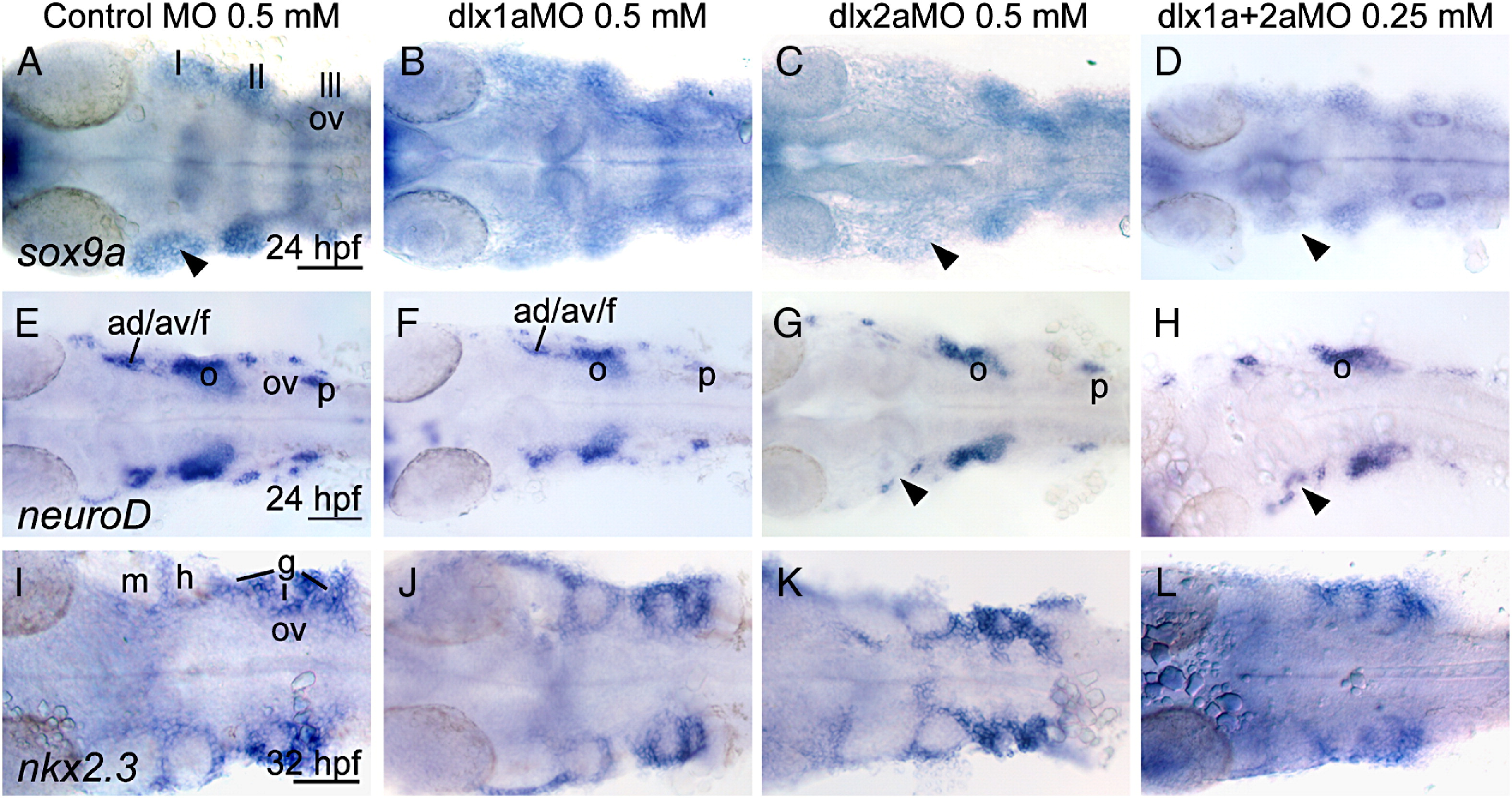

Fig. 5 Effects of dlx1a, and dlx2a loss of function on arch markers. (A, E, and I) Control MO, 0.5 mM; (B, F and J) dlx1aMO, 0.5 mM; (C, G and K) dlx2aMO, 0.25 mM; (D, H, and L) dlx1aMO + dlx2aMO, 0.25 mM each. Expression of (A–D) sox9a, (E–H) neuroD and (I–L) nkx2.3. All panels show dorsal view of flat mounted embryos with anterior to the left. Arrowheads indicate sites of reduced or lost expression. Roman numerals indicate cranial neural crest streams. g, gill arches; ad/av/f, anterodorsal/anteroventral lateral line/facial placode/ganglia; h, hyoid; m, mandibular arch; o, octavel/statoacoustic ganglia precursors; ov, otic vesicle; p, posterior lateral line placode/ganglion. Scale bar: 100 μm.
