Fig. S1

ID
ZDB-IMAGE-080325-22
Source
Figures for Hendricks et al., 2008
Figure Caption

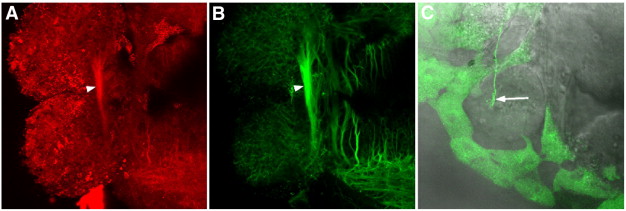

Fig. S1 Manipulation of EphB. (A, B) Incubation of a brain in unclustered Ephrin-B2/Fc did not prevent habenular commissure formation (arrowhead). The ligand did bind to commissural axons, as indicated by Alexa 546 anti-Fc antibody (A). (B) Acetylated tubulin labeling, showing axon tracts. (C) An axon expressing truncated EphB3, fused to GFP (arrow). The axon is traversing the roof plate.
