ZFIN Image: Sullivan-Brown et al., 2008, Fig. 3


Figure Caption

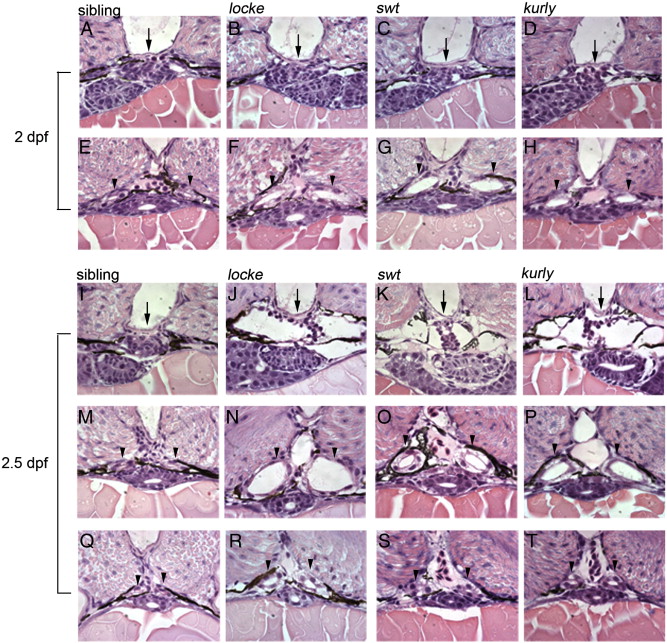

Fig. 3 Temporal and spatial analysis of cystic kidneys in zebrafish mutants. (A–H) 2 dpf; (I–T) 2.5 dpf. At 2 dpf, the glomerulus (arrows, A–D) appears intact in the mutant embryos; however, the medial tubules have become dilated (arrowheads, E–H). At 2.5 dpf, the glomerulus (arrows, I–L) and surrounding Bowman's space have become enlarged, compressing the podocytes in the mutants. The medial tubules are grossly dilated (arrowheads, M–P). Interestingly, the posterior tubules are less dilated, approaching wild-type size (arrowheads, Q–T). All pictures are 4 μm JB-4 plastic sections, stained with hematoxylin and eosin and taken with a 100x oil objective lens.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 314(2), Sullivan-Brown, J., Schottenfeld, J., Okabe, N., Hostetter, C.L., Serluca, F.C., Thiberge, S.Y., and Burdine, R.D., Zebrafish mutations affecting cilia motility share similar cystic phenotypes and suggest a mechanism of cyst formation that differs from pkd2 morphants, 261-275, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
