Fig. 5

ID
ZDB-IMAGE-071120-10
Source
Figures for Webb et al., 2007
Figure Caption

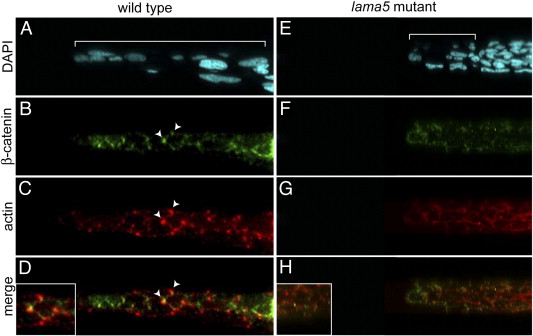

Fig. 5 Laminin α5 is required for localization of actin and β-catenin to cell–cell boundaries. Confocal line scans (transverse sections) of the fin fold at 48 hpf in wild-type (A–D) and lama5 mutant (E–H) embryos. Nuclei are marked with DAPI (A, E) and fin folds are bracketed. Neural tube and somitic nuclei are to the right of the bracket in panel E. In wild-type embryos, β-catenin (green, B) and actin (red, C) are enriched at cell–cell boundaries (arrowheads and inset in panel D). Lama5 mutants have reduced fin fold extension (compare brackets in panels A and E) and fail to enrich β-catenin (F) and actin (G) at points of cell–cell contact (inset in H). Merged green and red channels are shown in panels D and H, dorsal is to the left.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 311(2), Webb, A.E., Sanderford, J., Frank, D., Talbot, W.S., Driever, W., and Kimelman, D., Laminin alpha5 is essential for the formation of the zebrafish fins, 369-382, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
