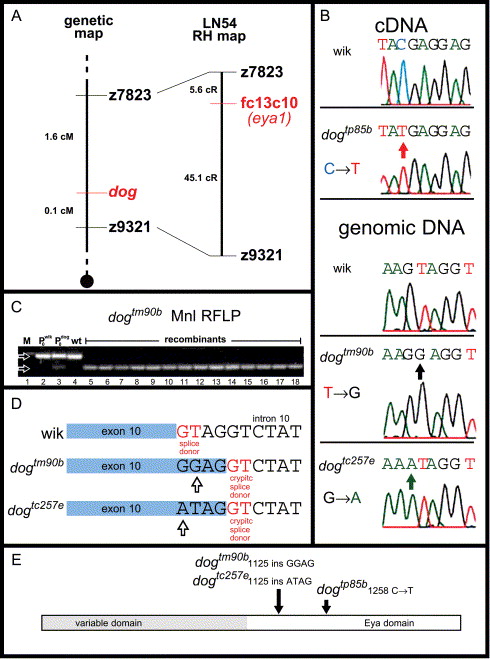

Fig. 1 The dog locus encodes eya1. (A) Physical and genetic maps of linkage group 24 (LG24) showing map positions of dog^tm90b and eya1. (B) Sequence analysis of eya1 in wild-type (WIK), dog^tp85b, dog^tm90b, and dog^tc257e mutants. Note that the T to G transversion in dog^tm90b genomic DNA creates a novel MnlI recognition sequence (3′-G G A G (N)₆-5′). (C) Linkage analysis via dog^tm90b-specific MnlI RFLP on genomic DNA from wild-type (lanes 2 and 4), heterozygous (lane 3), and dog^tm90b (lanes 5–18). The diagnostic dog^tm90b eya1 allele is 82 bp (bottom arrow) and the wild-type eya1 allele is 118 bp (top arrow). (D) Box diagrams represent point mutations and splicing product in wild type (WIK), dog^tm90b, and dog^tc257e. Open arrows show the mutated nucleotides in the two alleles. (E) Box diagram representing conceptual translation of eya1 cDNA. Locations of each dog allele specific mutation are noted by black arrows.
