Fig. 3

ID
ZDB-IMAGE-070928-25
Genes
Source
Figures for Sato et al., 2006
Figure Caption

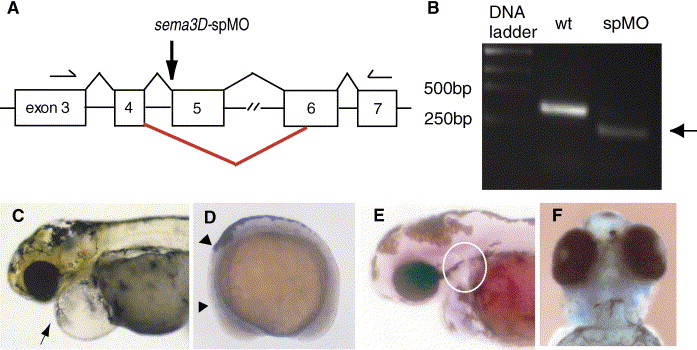

Fig. 3  sema3D-splice blocking morpholino knocks down sema3D mRNA and phenocopies sema3D-augMO. (A) Genomic structure of sema3D gene (GenBank #NM 131048), exons (boxes, not to scale). Splice donor site between 4th intron and 5th exon (5th exon codes amino acids in sema domain) was targeted by sema3D-spMO. The red line indicates the major splice variant observed following spMO injection. Primers used for RT-PCR analysis in B are shown as arrows (forward 5′-CCA GAC AAC ATC AAT AAA CAC CCC-3′, reverse 5′-TTG CCC AGG AAA TCA GAC GC-3′). (B) The single fragment (exons 3–7, 350 bp) amplified from wild-type RNA was diminished by sema3D-spMO and replaced by a smaller fragment (arrow, 230 bp). Sequencing revealed that sema3D-spMO caused utilization of cryptic splice sites, deleting exon 5 and part of exon 6, removing amino acids 129 through 168 (nucleotides 656–775 in sema3D mRNA), deleting the essential sema domain. Sema3D-spMO morphants had the same phenotypes as sema3D-augMO, including severe pericardiac edema (C, arrow, 4 dpf), reduction of crestin expression in cranial neural crest (D, arrowheads, 8 SS), reduction of rag1 expression in the thymus (E, white circle, 4 dpf) and loss of facial and pharyngeal cartilages (F, Alcian blue staining, 4 dpf).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 298(1), Sato, M., Tsai, H.J., and Yost, H.J., Semaphorin3D regulates invasion of cardiac neural crest cells into the primary heart field, 12-21, Copyright (2006) with permission from Elsevier. Full text @ Dev. Biol.
