Fig. 5

ID
ZDB-IMAGE-070928-19
Genes
Source
Figures for Hadrys et al., 2006
Figure Caption

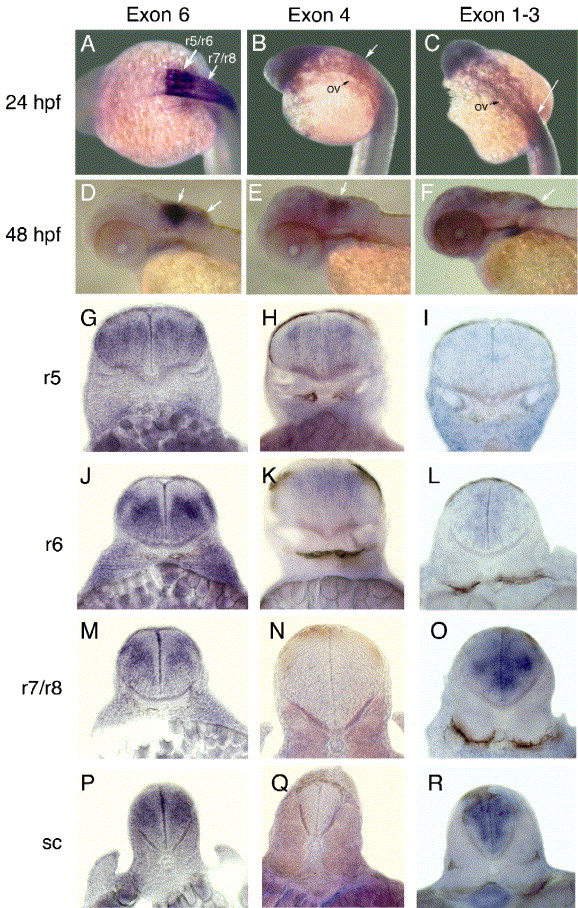

Fig. 5 Whole mount in situ hybridization of 24 hpf (A–C) and 48 hpf (D–F) zebrafish embryos using probes specific for hoxb3a transcript I (exon 4; column 2), transcript II/III (exons 1–3; column 3), and exon 6 that is included in all hoxb3a transcripts (column 1). Transcript I is expressed in r5 and r6 (B and E), whereas transcript II/III is expressed in r7 and r8 (C and F) and posterior. All three transcripts resemble the known expression pattern of zebrafish hoxb3a (A and D; Prince et al. 1998). In panels G to R, vibratome sections (30 μm) from anterior to posterior through the hindbrain of hybridized 48 hpf embryos are shown. (G, J, M, and P) Embryos were hybridized with an exon 6 probe; (H, K, N, and Q) embryos were hybridized with an exon 4 probe; (I, L, O, and R) embryos were hybridized with an exons 1–3 probe. The levels of sections (r5, r6, r7/r8, and spinal cord) are indicated left of each row. Abbreviations: r, rhombomere; sc, spinal cord; ov, otic vesicle. Arrows point to hindbrain expression domains.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 297(1), Hadrys, T., Punnamoottil, B., Pieper, M., Kikuta, H., Pezeron, G., Becker, T.S., Prince, V., Baker, R., and Rinkwitz, S., Conserved co-regulation and promoter sharing of hoxb3a and hoxb4a in zebrafish, 26-43, Copyright (2006) with permission from Elsevier. Full text @ Dev. Biol.
