Fig. 4

ID
ZDB-IMAGE-070720-1
Genes
Source
Figures for Londin et al., 2007
Figure Caption

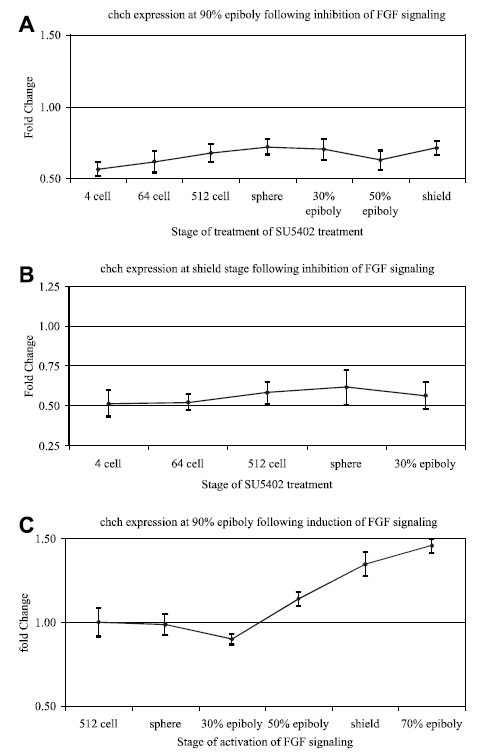

Fig. 4 FGF signaling regulates zebrafish chch expression. To determine if FGF signaling regulates chch gene expression, chch expression was assayed by real-time PCR following inhibition (A–B) or activation (C) of FGF signaling. Wild-type embryos were placed in were treated for 2 h in SU5402 to block FGF signaling at the indicated stage (x-axis) and collected at 90% epiboly (A) or shield stage (B) for real-time PCR. FGF signaling was induced by the addition of AP20187 to iFGFR1 mRNA injected embryos. Embryos were placed in the AP20187 at the indicated stage (x-axis) for 15 min then washed and collected at 90% epiboly for real-time PCR (C). The fold change in chch transcript levels (y-axis) is graphed relative to untreated control embryos (which is set at 1).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 7(6), Londin, E.R., Mentzer, L., Gates, K.P., and Sirotkin, H.I., Expression and regulation of the zinc finger transcription factor Churchill during zebrafish development, 645-650, Copyright (2007) with permission from Elsevier. Full text @ Gene Expr. Patterns
