Fig. S2

ID
ZDB-IMAGE-070421-13
Source
Figures for Pauls et al., 2007
Figure Caption

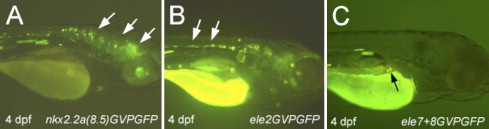

Fig. S2 Examples for transient GFP expression in 4-dpf-old larvae after injection of nkx2.2a promoter fragments fused to Gal4:VP16UASGFP (short: GVPGFP). (A) Fluorescent cells in the brain (arrows) after injection of the nkx2.2a(8.5 kb) promoter fragment. (B) Fluorescent cells in the spinal cord (arrows) after injection of element 2. (C) Fluorescent cells in the pancreas (arrow) after injection of elements 7 and 8.
