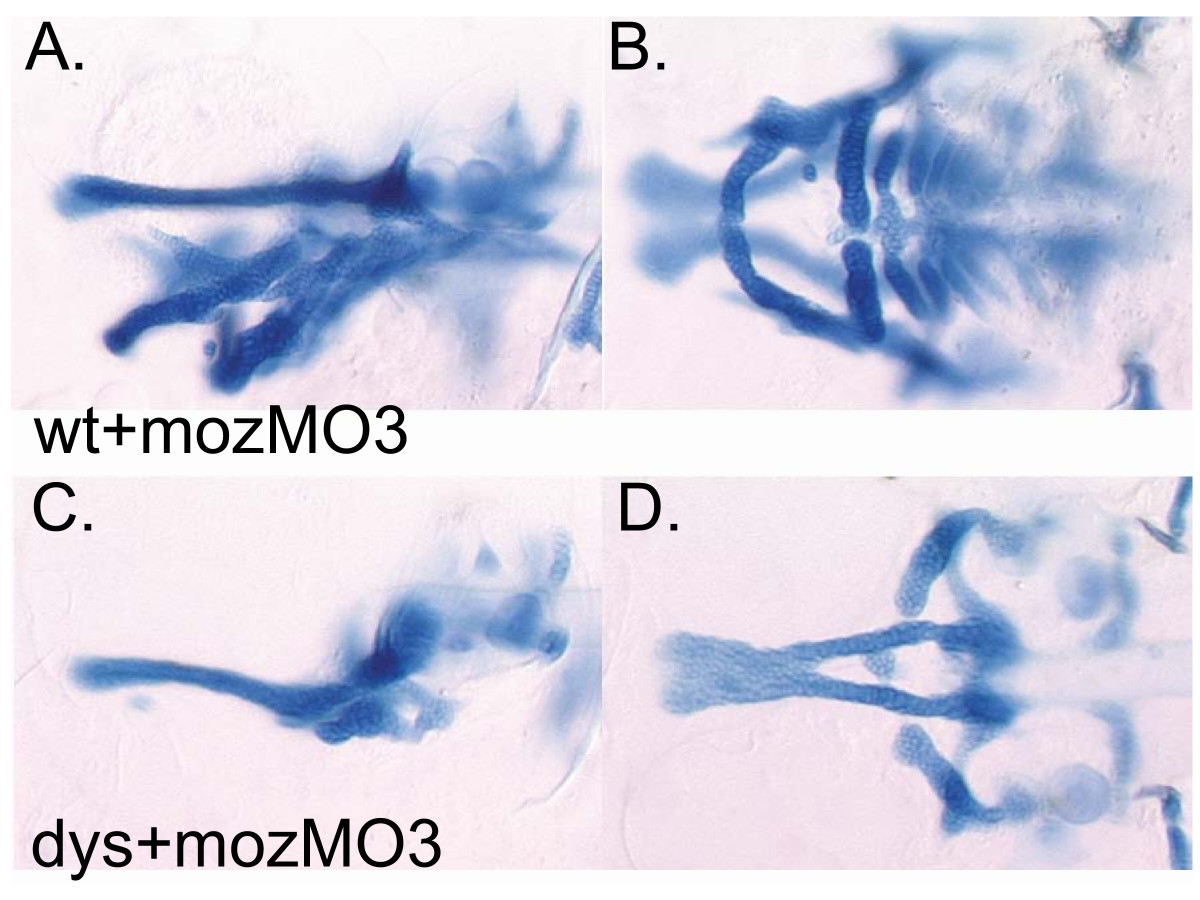

Fig. 6 Transformation of 2^ndarch identity transforms 2^ndarch wdr68 sensitivity. A, C) Lateral views at 4dpf. B, D) Ventral views at 4dpf. A, B) Wild type animal injected with mozMO transforms 2^ndarch cartilage elements into mirror image duplicates of 1^starch cartilages. C, D) Injecting dys animals with mozMO reveals similar cartilage losses as in maternal wdr68 knockdowns shown in (Fig. 4E, F) but with further reduction of HM region presumably through mirror image duplication of the missing 1^starch cartilages.
