Fig. 2

ID
ZDB-IMAGE-060807-1
Genes
Source
Figures for Won et al., 2006
Figure Caption

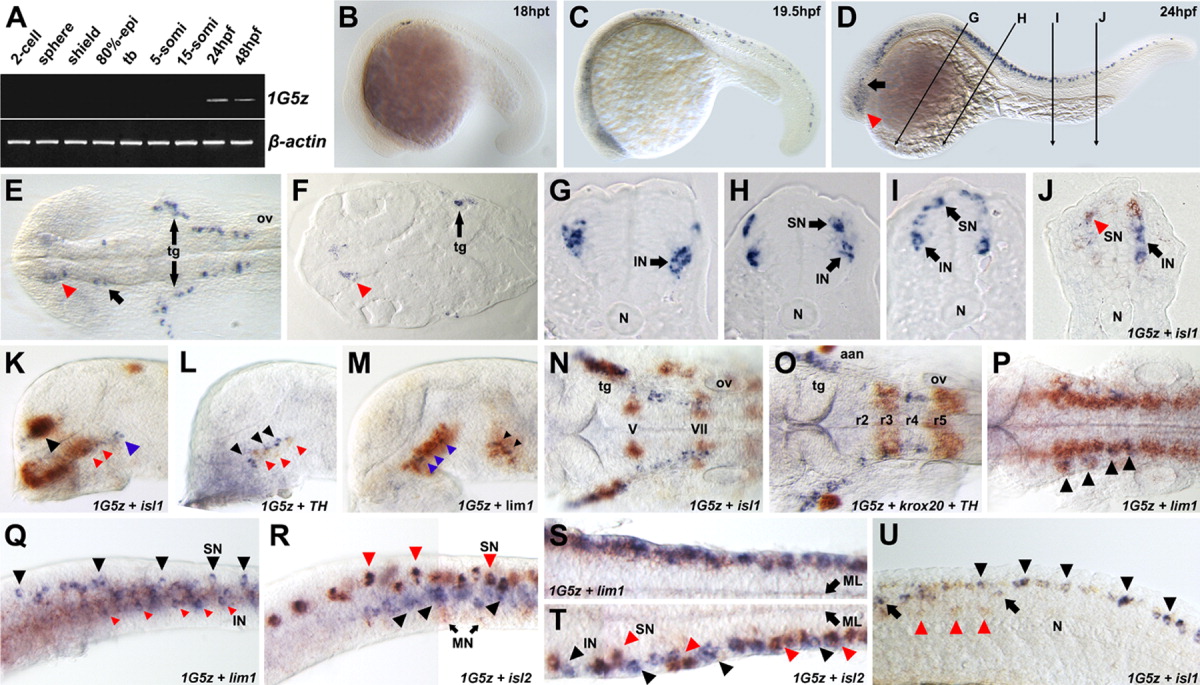

Fig. 2 Spatiotemporal distribution of 1G5z during early embryogenesis. A: 1G5z expression levels in the embryos at various developmental stages were analyzed using reverse transcriptase-polymerase chain reaction (RT-PCR). A β-actin-specific primer set was used to generate internal control for the RT-PCR. B: At the 18 hours postfertilization (hpf) stage, lateral view. C: The 20-somite stage, lateral view. Note that the first 1G5z transcripts appeared at this stage. D: At 24 hpf, lateral view. Diagram showing the plane of cryostat section (10 μm) in G, H, I, and J. E: Highly magnified dorsal view of brain region of D. Before taking pictures, the embryos were flat-mounted. The red arrowhead and arrow indicate the anterior-ventral diencephalon and the tegmentum, respectively. F: Horizontal section of E. The red arrowhead indicates the restricted expression pattern of 1G5z in the diencephalon. G-I: 1G5z mRNAs are detected in interneuron and sensory neuron. J: Two-color whole-mount in situ hybridization (WISH) with isl1 (orange color) shows interneuron- and sensory neuron-specific expression of 1G5z (blue color) in the medial spinal cord. The red arrowhead indicates overlapping expression of 1G5z and isl1 in the sensory neuron. The black arrow indicates interneuron expression of 1G5z. K-U: Bicolor WISH with isl1(K,N,U), th (L), lim1 (M,Q,S) isl2 (R,T) th plus krox20 (O) in orange (INT-BCIP substrate) and 1G5z in blue (NBT-BCIP substrate) was performed. K-M: Lateral view of the forebrain. K: 1G5z and isl1 are colocalized in the telencephalon (black arrowhead) but partly overlap in the diencephalon (red arrow). Note that the blue arrowhead indicates a nonoverlapping region. L: 1G5z-expressing neural cell clusters (black arrowhead) are not colocalized with th-positive cells (red arrowhead). M: lim1-expressing domains in the diencephalon (blue arrow) and mesencephalon (black arrow) encompass 1G5z-positive neural cell clusters. N-P: Dorsal view of the hindbrain. N: 1G5z and isl1 are colocalized in the trigeminal ganglion (tg). O: 1G5z and krox20 are colocalized in the rhombomere3 (r3). P: lim1 expression domain completely encompasses 1G5z expressing hindbrain cells. Q-T: Anterior trunk spinal cord. Q,R,U: Lateral view of trunk spinal cord. Q: 1G5z and lim1 are colocalized in the interneurons (red arrowhead) but not in the sensory neurons (black arrowhead). S: Dorsal view of Q. R: 1G5z and isl2 are colocalized in the sensory neurons (red arrowhead) but not in the interneurons (1G5z-specific expression; black arrowhead) and motoneurons (isl2-specific expression; black arrow). T: Dorsal view of R. U: In the medial-caudal trunk region, 1G5z and isl1 are colocalized in the sensory neurons (black arrowheads) but not in the interneurons (black arrows). Red arrowheads indicate motor neurons in which isl1 is exclusively detected. The anterior part of all embryos is oriented to the left. aan, arch-associated neuron; epi, epiboly; IN, interneuron; ML, midline; MN, motor neuron (motoneuron); N, notochord; ov, otic vesicle; r, rhombomere; SN, sensory neuron; tb, tail bud; tg, trigeminal ganglion; V, fifth cranial nerve; VII, seventh cranial nerve.

Figure Data
