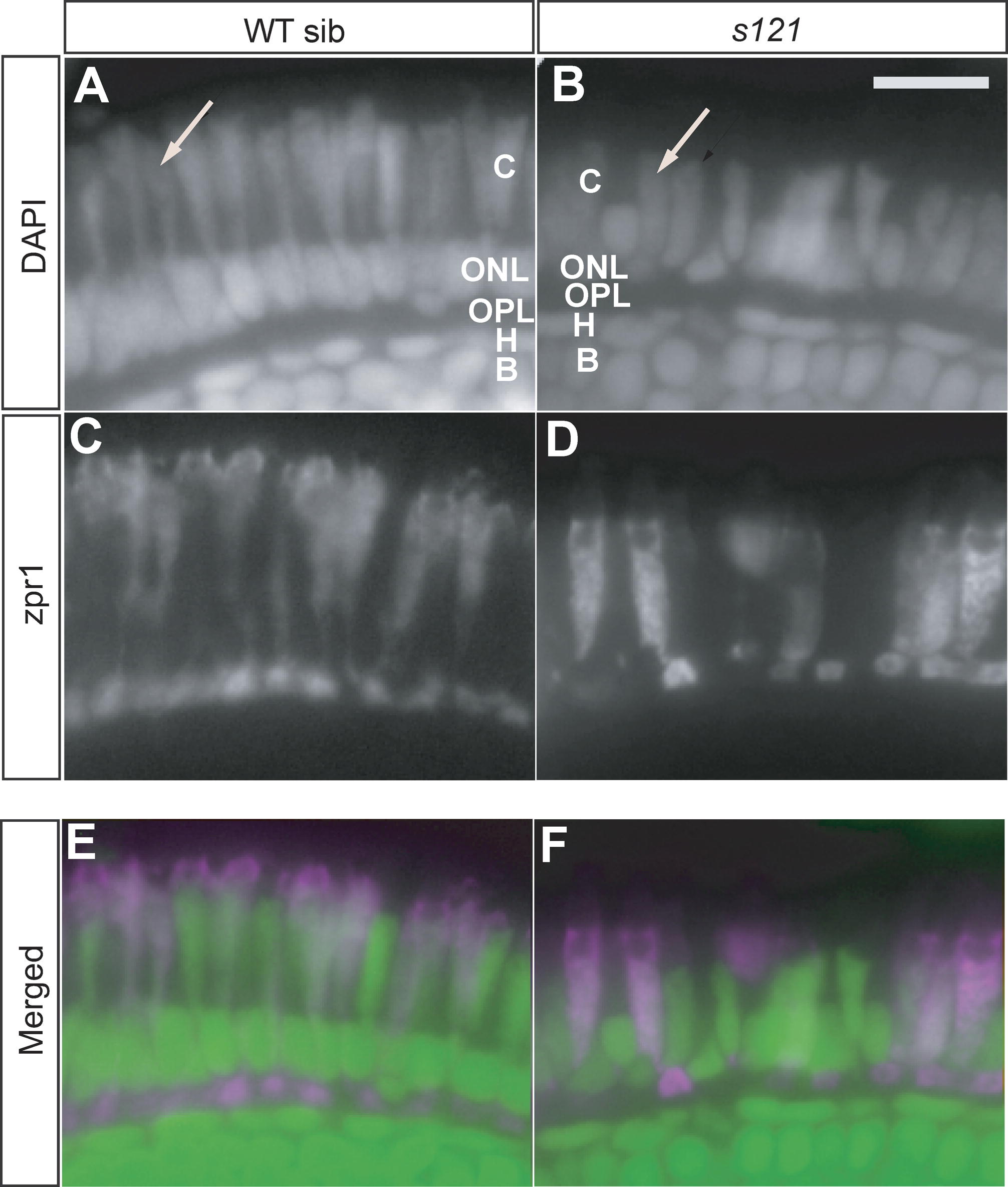

Fig. 3 Example of a Mutant with Abnormal Morphology of Cone Photoreceptors. Photoreceptors in a retinal section stained with DAPI (A and B) and a marker for double cones, zpr1 (C and D) at 7 dpf in WT larva (A, C, and E) and yoi^s121 mutant retina (B, D, and F). Merged images of DAPI (in green) and zpr1 (in magenta) are also shown (E and F). Both zpr1-positive and zpr1-negative cone photoreceptors in the mutant are "stumpy" when compared to those in the control retina (arrows). B, bipolar cells; C, cone photoreceptor cells; H, horizontal cells; ONL, outer nuclear layer; OPL, outer plexiform layer. Scale bar is 10 μm.
