FIGURE

Figure 3

ID

ZDB-FIG-220104-161

Publication

Taranta et al., 2021 - Benefits and Toxicity of Disulfiram in Preclinical Models of Nephropathic Cystinosis

Other Figures

All Figure Page

Back to All Figure Page

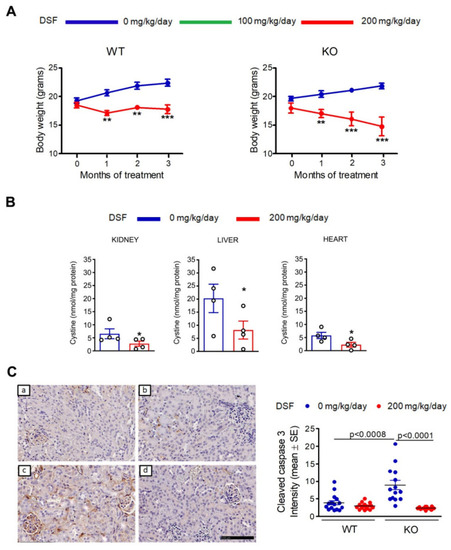

Figure 3

Short-term treatment with high DSF dose. Two-month-old mice were fed on standard or DSF-supplemented diet at an estimated dose of 200 mg/kg of body weight/day. (A) Body weight in animals fed on standard or DSF-supplemented diets for three months. Data are shown as mean ± SEM; n = 9 WT and 4 KO mice; ** p < 0.005, *** p < 0.0005 compared to untreated animals. (B) Cystine content in kidneys, liver, and heart of KO animals sacrificed at 5 months of age (n = 4 mice per group). Values are indicated as mean ± SEM; * p < 0.05 compared to untreated mice. (C) Representative immunohistochemistry images stained with anti-cleaved caspase-3 antibodies in kidneys obtained from WT (a,b) and KO (c,d) mice that were fed on standard (a,c) or DSF-supplemented (b,d) diets. Scale bar: 100 µm. The graph shows the mean cleaved caspase-3 intensity measured on five separate slides per animal (n = 3 mice per group).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cells
