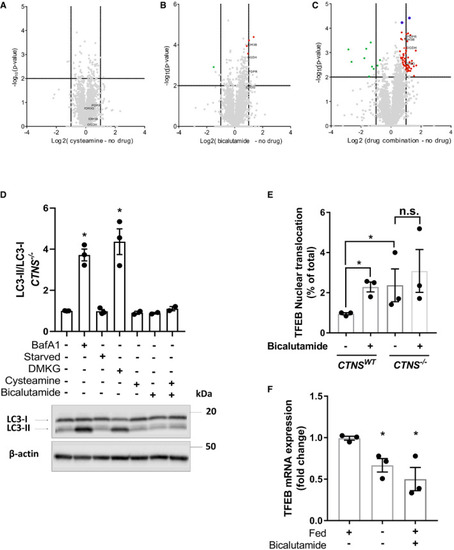

Cysteamine–bicalutamide combination treatment shows a synergic effect in treatment of cystinotic ciPTEC

A–C

Volcano plot illustrates significantly differentially abundant proteins (n = 3). The ‐log₁₀ (Benjamini–Hochberg corrected P‐value) is plotted against the log₂ (fold change: CTNS^−/− no drug treatment/CTNS^−/− cysteamine treatment), (fold change: CTNS^−/− no drug treatment/CTNS^−/− bicalutamide treatment) and (fold change: CTNS^−/− no drug treatment/CTNS^−/− combination treatment), respectively. The non‐axial vertical lines denote ±1.5‐fold change while the non‐axial horizontal line denotes P = 0.05, which is our significance threshold (prior to logarithmic transformation).

Western blotting and densitometric analyses for LC3‐II/LC3‐I ratio in CRISPR‐generated CTNS^−/− cells treated with cysteamine (100 µM), bicalutamide (35 µM), and a combination of cysteamine and bicalutamide (100 and 35 µM, respectively). β‐Actin was used as a loading control (n = 3).

Quantification of TFEB‐GFP nuclear translocation in CTNS^WT, and CTNS^−/− cells upon treatment with bicalutamide (35 µM) (n = 3).

TFEB mRNA expression of the CTNS^WT cells upon starvation and treatment with bicalutamide (35 µM) (n = 3).

Data information: Data are expressed as mean ± SEM. *P‐values < 0.05 were considered to be significant. One‐way ANOVA with Dunnett’s correction (D, E and F) or unpaired t‐test (E). Exact P‐values and statistical tests are listed in Appendix Table S1.
