Figure Caption
Fig. 3

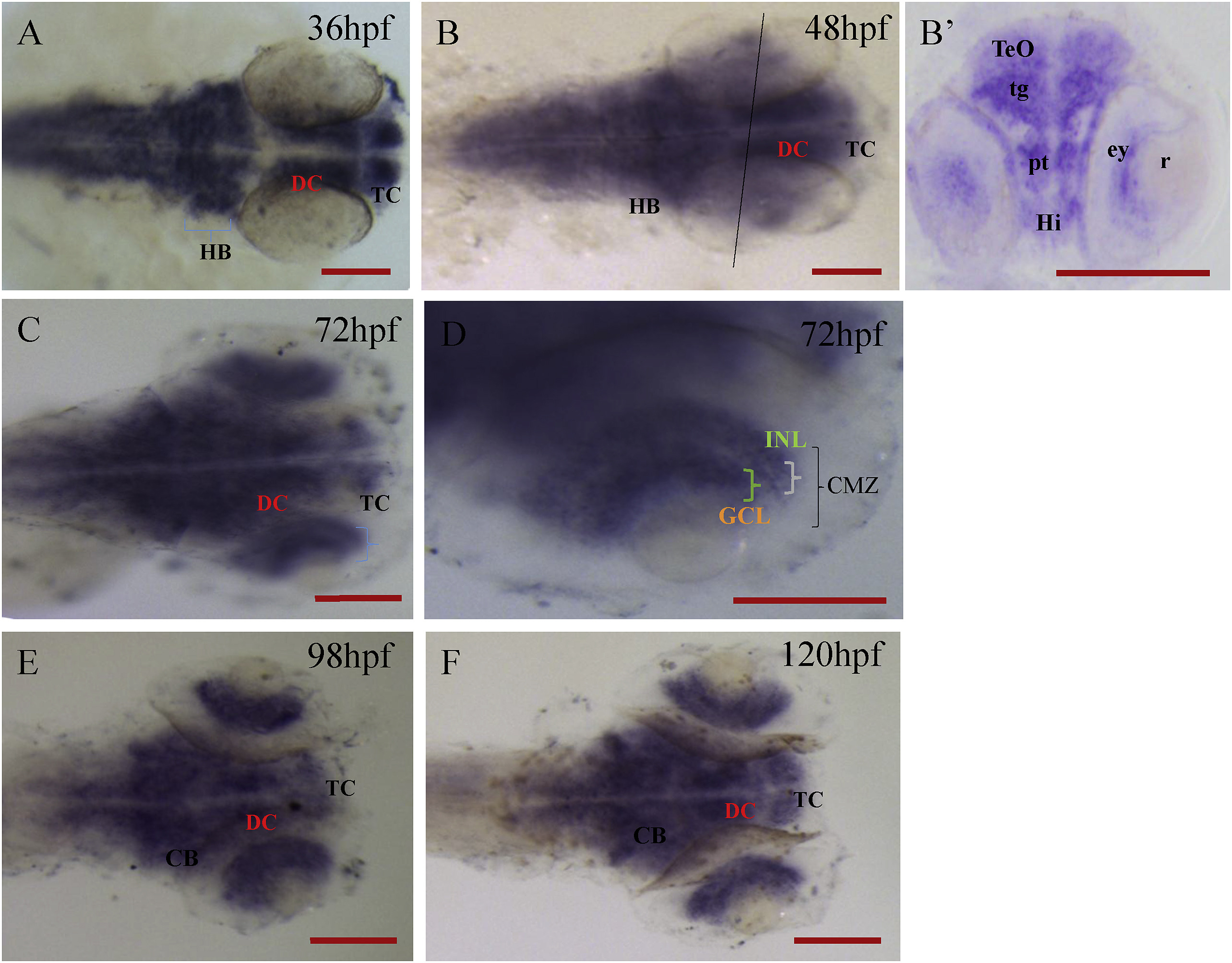

Distribution of prune2 transcripts in the early larval development.prune2 messages were restricted to the CNS at 36 hpf through 120 hpf. A-C, E, F; dorsal view. D; magnified retina of the embryo at 72 hpf in panel C. CMZ; Ciliary Marginal Zone, GCL; Ganglion Cell Layer, INL; Inner nuclear Layer, TC; telencephalon, DC; diencephalon, HB; hind brain, CB; cerebellum. All scale bars in red indicate 50 μm. B′ is the transverse section along the black line of panel B.
