Fig. 5

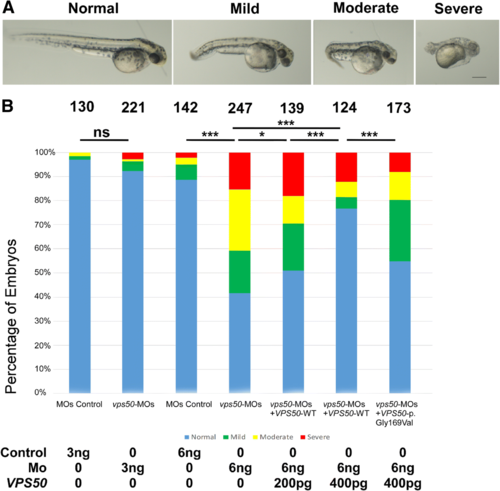

a Distribution of the four categories in each of the experimental groups. We clustered these injected embryos into four categories according to the severity of their morphology. Grade 1: WT like; Grade 2: mild, curving axis compared with WT embryos; Grade 3: moderate, up to 1/3 shortened axis; Grade 4: severe, the body axis just extended out of the range of the yolk ball. b Injection of vps50-MOs yielded high proportion abnormal phenotypes. Wild-type VPS50 exhibited higher efficiency saving ability than the p. Gly169Val mutation. Dosage-dependent rescue of vps50 knock-down zebrafish embryo with Human VPS50 mRNA. 6 ng vps50-MOs were coinjected with 0, 200, and 400 pg of VPS50 mRNA. The number above each bar was the total number of embryos counted. The P value was calculated by chi-squared analysis

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO1-vps50
Knockdown Reagent:	MO1-vps50
Observed In:	whole organism anterior-posterior axis
Stage:	Long-pec

Phenotype Detail
