FIGURE

Fig. 5

ID
ZDB-FIG-121210-34
Publication
Wu et al., 2012 - Chemokine GPCR Signaling Inhibits β-Catenin during Zebrafish Axis Formation
Other Figures
All Figure Page
Back to All Figure Page
Fig. 5

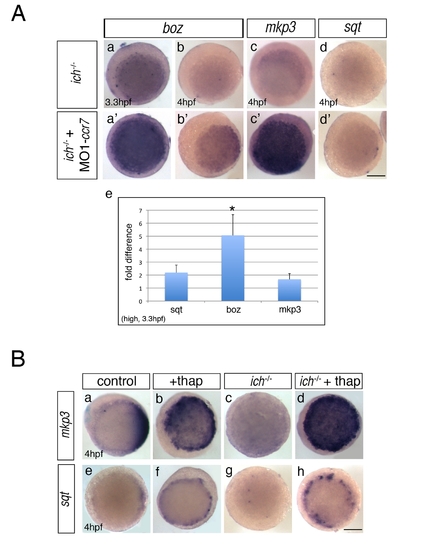

Inhibition of Ccr7 and intracellular calcium promotes expression of dorsal genes.

(A) Expression of β-catenin downstream targets, boz, mkp3, and sqt, in ich mutants (a–d) and MO1-ccr7-injected ich mutants (a2–d2) during early blastula stages revealed by WISH. (a–a2) 3.3 hpf, boz, n = 11/14; (b–b2) boz, n = 6/11; and 4 hpf (c–c2) mkp3, n = 8/8; (d–d2) sqt, n = 8/8. Animal views, dorsal to the right. (e) Quantification of the relative expression levels of sqt, boz, and mkp3 in ich mutants and MO1-ccr7-injected ich mutants by qRT-PCR; * p<0.05, Student′s t test. (B) The effect of thapsigargin on the expression of mkp3 and sqt in WT and ich embryos at sphere stage, 4 hpf. (a–d) mkp3: b, n = 9/9; d, n = 13/13. (e–h) sqt: f, n = 6/6; h, n = 8/8. Animal views.

Expression Data
Genes:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage: Sphere

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage: Sphere

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Biol.
