ZFIN Image: Mannucci et al., 2021, Fig. 9


Figure Caption

Fig. 9

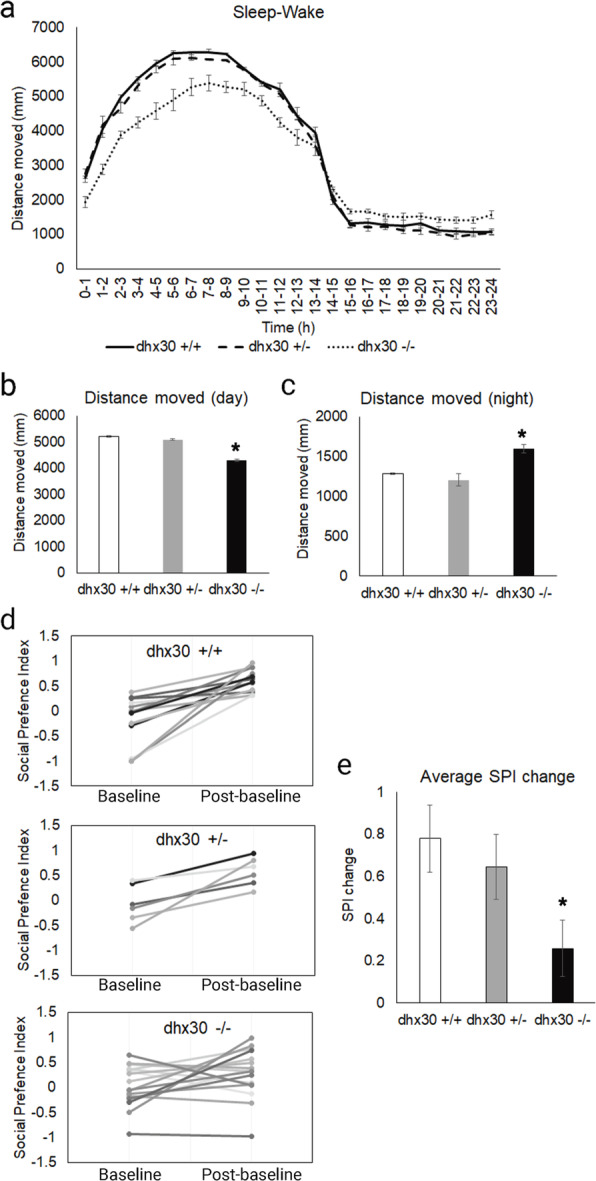

Behavioral analyses of dhx30 mutant zebrafish. a Distance moved of dhx30 mutants and wild-type sibling controls measured at 5 days post fertilization. b Average of distance moved during 14-h daytime. c Average of distance moved during 10-h nighttime. N = 15, 18, and 25 for +/+, +/−, and −/− animals, respectively. d Social preference index (SPI) calculated during 10-min baseline and post-baseline period. SPI = 1 indicates a fish that spends 100% of its time near a conspecific, SPI = − 1 indicates a fish that spends 100% of its time near the empty well, and SPI = 0 indicates a fish that spends equal amounts of time near the conspecific and near the empty well. e The change in SPI between baseline and post-baseline, indicating the preference of zebrafish to stay close to conspecific fish. N = 13, 6, and 17 for +/+, +/−, and −/− animals, respectively. Data are presented as means ± standard error of mean based on the indicated number of embryos. *: significantly different from dhx30+/+ (*p< 0.05; unpaired Student’s t test)

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Genome Med.
